Single vs Double Girder Gantry Cranes: Which is Right for You?
When it comes to lifting heavy loads in industrial and construction environments, choosing the right gantry crane is essential for operational efficiency, safety, and cost-effectiveness. Among the various types available in the market, single girder and double girder gantry cranes are the most common options. But how do you know which one is right for your specific requirements? In this comprehensive guide, we will explore the differences between single and double girder gantry cranes, their advantages and disadvantages, applications, and most importantly, how they relate to gantry crane prices. By the end of this article, you’ll be better equipped to make an informed decision that enhances your productivity and meets your budgetary constraints.
Understanding Gantry Cranes
A gantry crane is a type of crane that is supported by a framework that straddles the load it is lifting, allowing for greater horizontal mobility. Primarily used in shipping yards, warehouses, and construction sites, gantry cranes serve a variety of functions from lifting shipping containers to maneuvering heavy equipment.

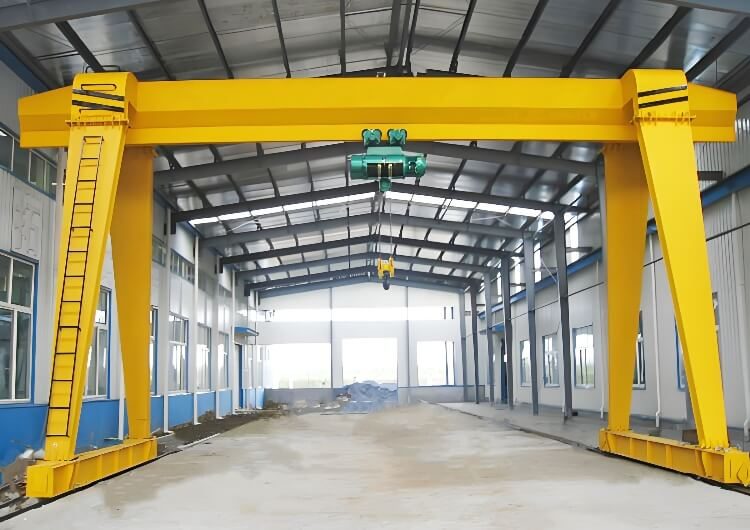

What is a Single Girder Gantry Crane?
A single girder gantry crane utilizes one main girder for the crane’s structure, running across the width of the workspace. The trolley and hoisting mechanism travel along the girder. This design makes single girder cranes more lightweight and cost-effective, and they are often favored for lighter operations.
Common Applications
- Workshops and Warehouses: Ideal for light to medium lifting tasks.
- Maintenance Facilities: Commonly used for lifting equipment for repairs.
- Small Manufacturing Plants: Where space is limited and lower lifting capacities are sufficient.

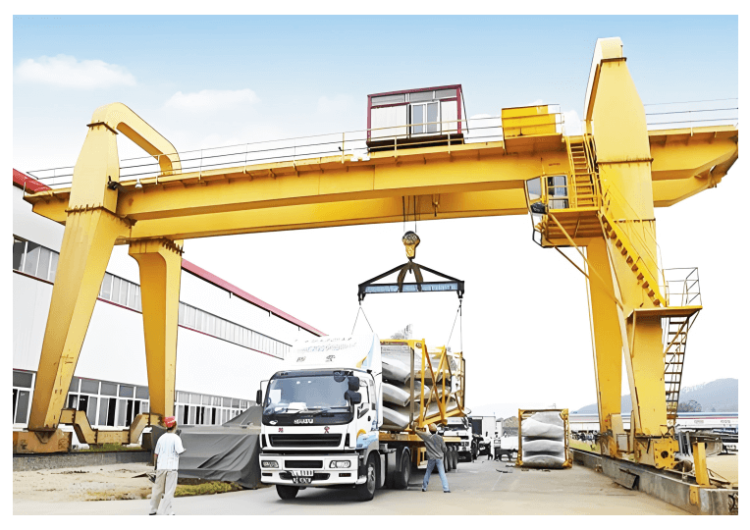

What is a Double Girder Gantry Crane?
In contrast, a double girder gantry crane employs two parallel girders. This allows for increased load capacity and stability, as well as greater lift height. The design supports heavier loads and is generally used in more demanding environments.
Common Applications
- Heavy Industrial Facilities: Suitable for manufacturing and assembly lines.
- Shipyards and Construction Sites: Capable of lifting heavy machinery and materials.
- Large Warehousing Operations: Where high-volume and heavy loads need to be moved efficiently.
Type Of Gantry Cranes

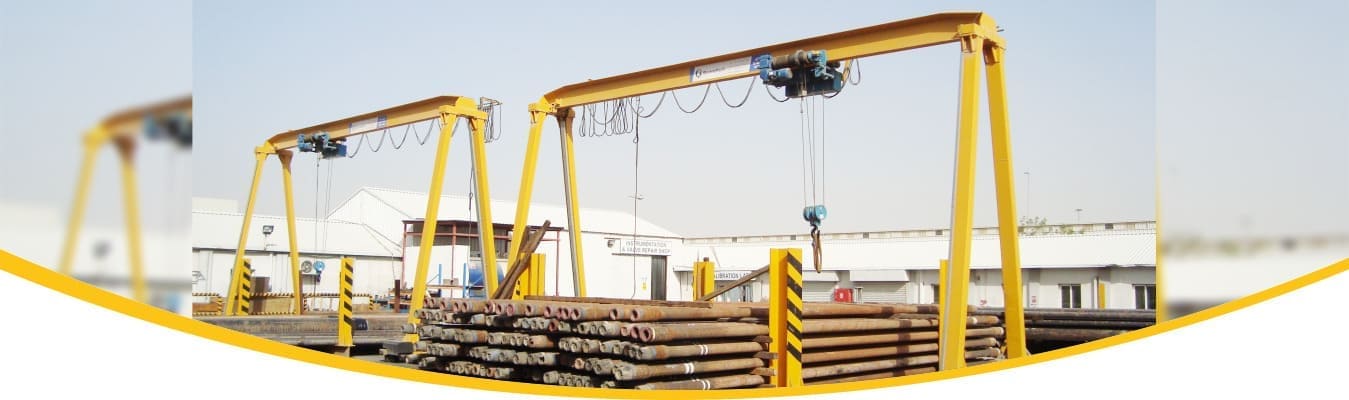

Single gantry cranes
Single Girder Gantry Cranes are the perfect solution for efficient and economical lifting in industrial environments.

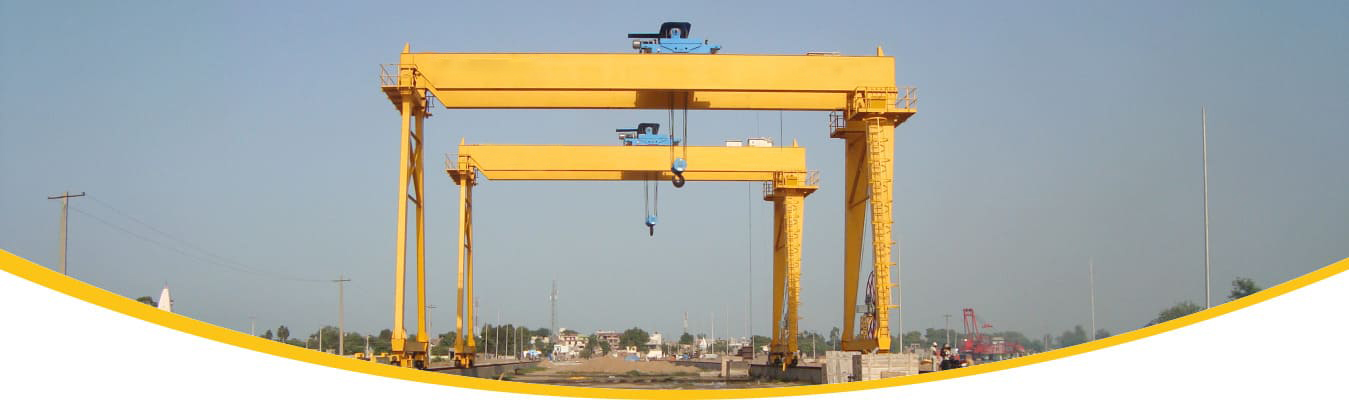

Double gantry cranes
Double Girder Gantry Cranes are the ideal choice for heavy-duty lifting applications in manufacturing, construction, and shipping industries.
Portable gantry cranes
Portable Gantry Cranes are the ultimate solution for businesses seeking versatility and ease of use in material handling.
Semi gantry cranes
Semi Gantry Cranes offer a flexible and cost-effective solution for heavy lifting tasks in various environments, including warehouses, construction sites, and manufacturing facilities.
Rubber tyre gantry crane
Rubber Tyre Gantry (RTG) Cranes are designed to provide unparalleled flexibility and efficiency in container handling at ports, terminals, and logistics hubs.
Container gantry cranes
Container Gantry Cranes are the backbone of modern port operations, designed for the efficient loading and unloading of shipping containers.
Pros and Cons of Single Girder Gantry Cranes
Advantages of Single Girder Gantry Cranes
-
Cost-Effective Solution: The gantry crane price for single girder cranes is generally lower compared to double girders. This makes them attractive for small businesses or projects with budget constraints.
-
Space Efficiency: The compact design allows these cranes to occupy less space, making them suitable for smaller operational areas. Their lighter structure also means they can be installed in locations where the floor is not reinforced to support heavier equipment.
-
Simplicity in Installation: Single girder cranes are relatively straightforward to install. This can save time and labor costs during setup.
-
Easier Maintenance: With fewer parts and more straightforward designs, maintenance and repairs can often be performed more quickly and easily.
Disadvantages of Single Girder Gantry Cranes
-
Limited Load Capacity: Single girder cranes are typically limited to lifting capacities of around 10 tons, making them unsuitable for heavier applications.
-
Reduced Stability in Windy Conditions: Their lighter design can make them less stable in windy environments, particularly for outdoor use.
-
Lower Hook Height: The design generally offers less vertical height, restricting the types of loads that can be lifted.
Pros and Cons of Double Girder Gantry Cranes
Advantages of Double Girder Gantry Cranes
-
Higher Load Capacity: Double girder cranes can typically handle loads exceeding 10 tons, making them ideal for industrial applications that require heavy lifting.
-
Increased Stability: The dual girder design offers greater stability, which is crucial when lifting heavy loads or operating in windy conditions.
-
Enhanced Hook Height: These cranes provide increased hook height, allowing for taller loads to be lifted and a broader range of applications.
-
Flexibility in Design: Double girder cranes can be custom-designed for specific operational needs, allowing for specialized configurations.
Disadvantages of Double Girder Gantry Cranes
-
Higher Initial Cost: The price point for double girder cranes is significantly higher due to their complexity and load-bearing capabilities. This may make them less appealing for smaller projects.
-
Complex Installation: Installation procedures can be more involved due to the weight and dimensions of the equipment, potentially leading to increased labor costs.
-
Need for Reinforced Foundation: Due to their heavier weight, double girder cranes often require reinforced foundations, which can add to the initial investment cost.
Factors to Consider When Choosing Between Single and Double Girder Gantry Cranes
When it comes to deciding between a single girder and double girder gantry crane, several key factors should be evaluated:
1. Load Requirements
Always start by considering the types of loads you’ll be lifting. If your operations frequently involve lifting heavy machinery or large components, a double girder crane may be your best option. Conversely, for lighter loads, a single girder crane can serve your needs effectively.
2. Operational Environment
Evaluate whether your crane will be used indoors or outdoors, and consider the space constraints of your facility. Larger facilities with expansive spaces may benefit from the flexibility of a double girder crane, while smaller workshops might find single girder cranes to be more than adequate.
3. Budget
Examine your budget carefully. Remember that while double girder cranes have a higher initial cost, they may offer long-term savings due to their durability and greater lifting capacities. Conversely, single girder cranes will have a lower upfront investment, making them more suitable for small businesses or temporary projects.
4. Future Needs
Think ahead about potential growth or changes in your operational requirements. If you anticipate expanding capacity in the future, investing in a double girder crane may be wise.
The Price Factor: What’s the Cost of Gantry Cranes?
When considering the gantry crane price, it’s essential to understand that various factors contribute to the overall cost. The price may vary based on:
- Type of Crane: As outlined, single girder cranes are generally less expensive than double girder cranes.
- Load Capacity: Higher capacity cranes typically come with increased costs.
- Customization: Custom features or specifications will lead to higher prices, as they require more specialized engineering and manufacturing.
- Brand and Warranty: Well-established brands that offer warranties may charge more, but they often come with additional reliability and service options.
Average Price Ranges
While prices will vary greatly depending on the factors mentioned above, a rough estimate can help you budget:
- Single Girder Gantry Cranes: 5,000to5,000 to 25,000
- Double Girder Gantry Cranes: 15,000to15,000 to 100,000 or more
For an accurate quote tailored to your specific needs, consulting with an expert supplier is crucial.
SLKJ Crane: Your Trusted Partner for Gantry Cranes
If you’re in the market for a new gantry crane, look no further than SLKJ Crane. With years of experience and specialized knowledge in lifting solutions, we are committed to providing high-quality products tailored to your specific needs. Our team of experienced professionals can assist you in navigating the various options available and help you choose the best crane for your operations, ensuring it fits your budget while meeting all quality and safety standards.
At www.slkjcrane.com, we offer a wide range of both single and double girder gantry cranes, along with additional services such as installation, maintenance, and support. Our expert team is ready to collaborate with you to find the most effective and economical solution for your lifting challenges.
Conclusion
In summary, both single and double girder gantry cranes have their own sets of advantages and disadvantages. By thoroughly assessing your operational needs, load requirements, budget, and future growth potential, you’ll be in a better position to select the right gantry crane for your business.
With the help of SLKJ Crane, you can make an informed decision that not only optimizes your workflow but also aligns with your financial goals. Don’t hesitate to get in touch with us for a consultation, and let’s find the perfect gantry crane solution for your operations today!
