Portable Aluminum Gantry Crane: Adjustable, Easy to Move, Ideal for Narrow-Space Lifting
Handling heavy loads in confined or temporary areas is often a challenge for maintenance and warehouse operations.
The portable aluminum gantry crane—a lightweight, adjustable, and movable lifting system—offers an efficient and flexible solution for narrow spaces.
This guide explains what an aluminum portable gantry crane is, its major advantages, configuration types, technical specifications, and application industries, helping you find the most suitable model for your project.
What Is a Portable Aluminum Gantry Crane?

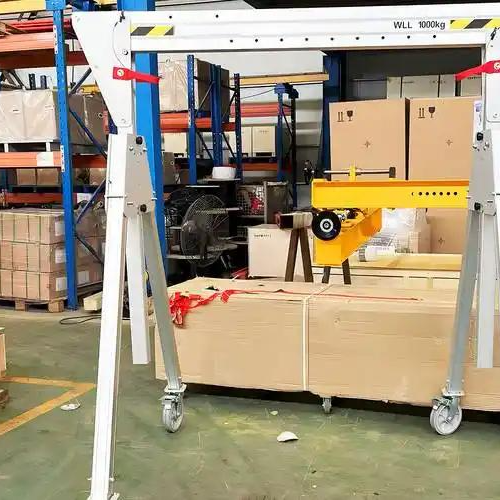

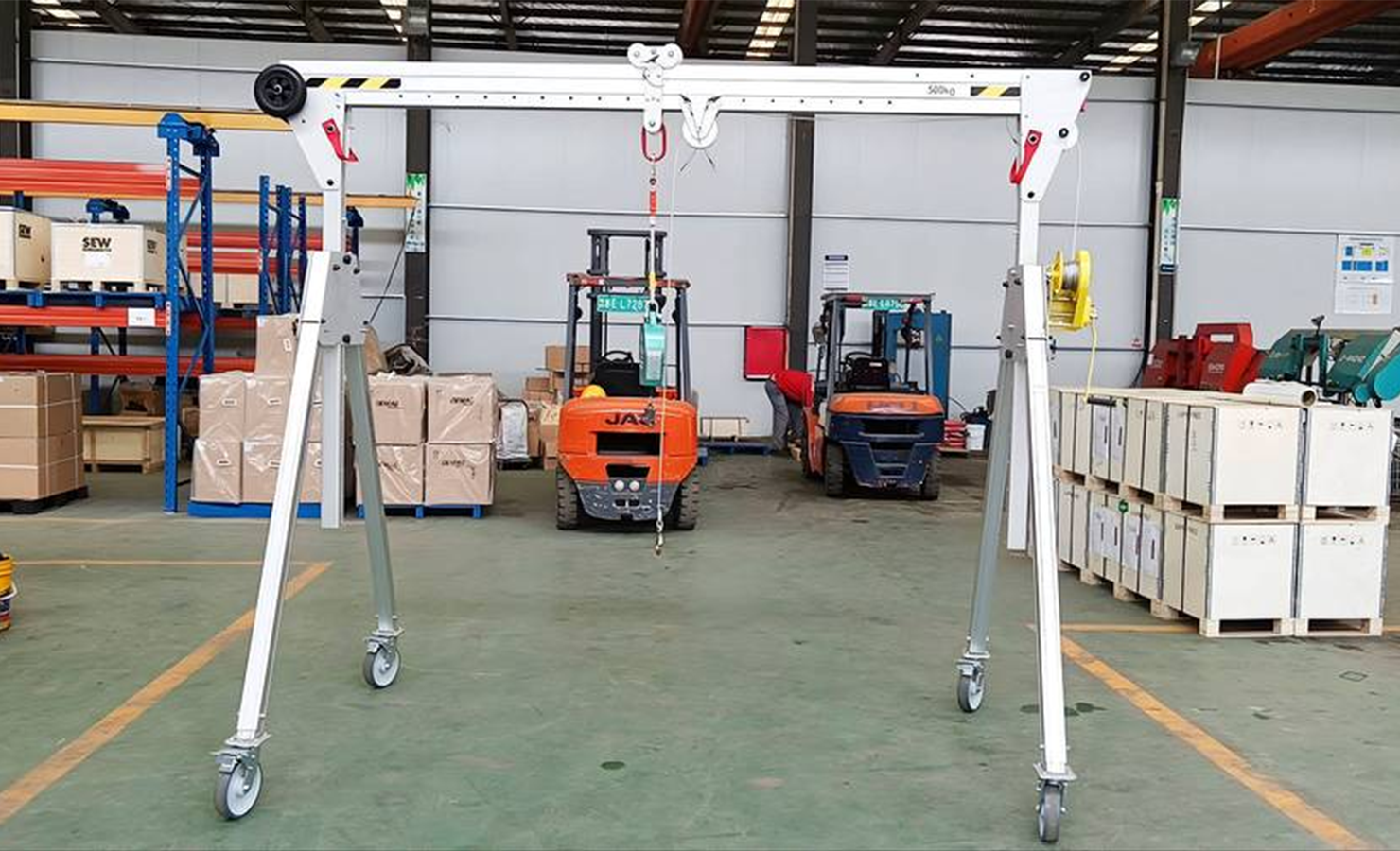

A portable aluminum gantry crane is a compact and mobile lifting structure made from high-strength aluminum alloy, designed to handle small to medium loads efficiently.
Unlike traditional steel cranes, it features a foldable frame, allowing for easy storage and transport.
Operators can assemble or disassemble the crane within minutes, making it ideal for workshops, warehouses, and temporary maintenance tasks.
At SLKJCrane, our aluminum portable gantry cranes combine lightweight design with industrial-grade stability, ensuring safe lifting operations in both indoor and outdoor environments.
Key Advantages: Five Core Features Explained
1 Superior Portability
Constructed from 6061-T6 structural aluminum, the crane weighs nearly 60 % less than comparable steel gantries.
It can be handled and installed by just one or two workers, saving time and labor costs.
Many models also feature foldable side frames, making transport and storage remarkably convenient.
2 High Load Capacity
Despite its light weight, the aluminum gantry system offers excellent strength and rigidity, safely supporting 0.25 t – 3 t loads.
The optimized beam design minimizes deflection, ensuring stable lifting performance for heavy-duty use.
For heavier or double-beam solutions, refer to our double girder gantry crane series.
3 Quick and Tool-Free Assembly
The frame uses bolt-connected joints and quick-release locking pins, enabling setup or teardown within 10 – 30 minutes.
No welding or specialized equipment is required—ideal for mobile or temporary job sites.

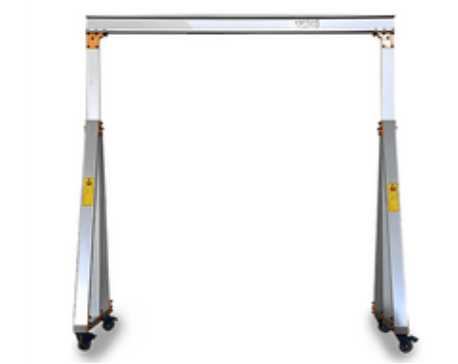

4 Adjustable Height and Span
Some models offer both height and span adjustability, allowing users to adapt the crane to different workspace limitations or object sizes.
Custom options are available through SLKJCrane’s overhead crane solutions, which can be integrated with electric hoists or trolleys for enhanced functionality.
5 Stable and Flexible Mobility
Each unit is fitted with swivel casters and locking brakes, allowing smooth movement within narrow aisles while maintaining operational safety.
This makes it a perfect narrow-space lifting solution for logistics centers, mechanical repair areas, and basement operations.
Common Types and Specifications of Aluminum Gantry Cranes
1 Main Types and Their Applications
| Model Type | Load Range (t) | Total Height (m) | Max Lifting Height (m) | Minimum Working Width (m) |
|---|---|---|---|---|

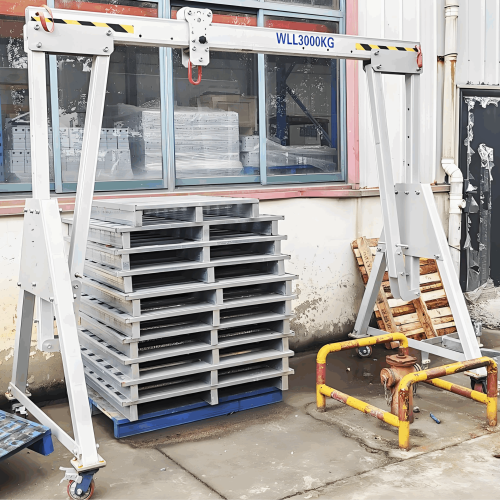

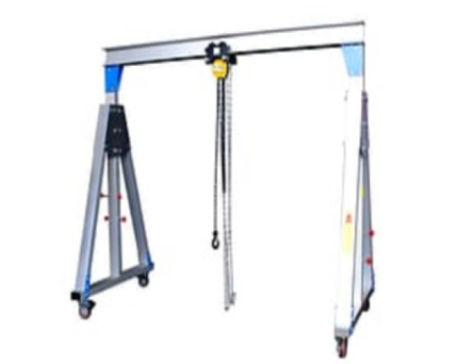

| Fixed Type | 0.5 – 3 | 3.0 – 4.0 | 2 – 3 | ≥ 2 |
| Adjustable Height | 1 – 3 | 2.0 – 4.0 | 2.5 – 3.0 | ≥ 3 |

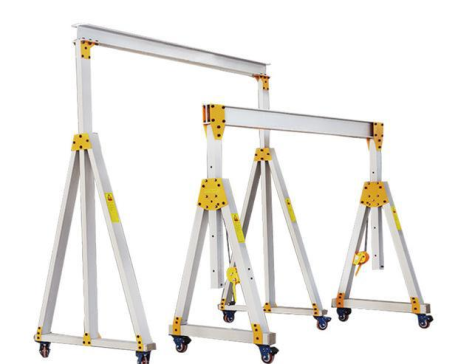

| Adjustable Height & Span | 0.5 – 2 | 1.5 – 4.0 | 2 – 3.0 | ≥ 1.5 |

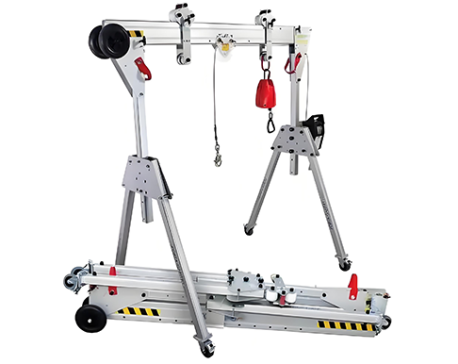

| Foldable Type | 0.25 – 1 | 1.5 – 4.0 | 2 – 3.0 | ≥ 1.5 |
2 Technical Parameter Comparison
| Model Type | Load Range (t) | Total Height (m) | Max Lifting Height (m) | Minimum Working Width (m) |
|---|---|---|---|---|
| Fixed Type | 0.5 – 3 | 3.0 – 4.0 | 2 – 3 | ≥ 2 |
| Adjustable Height | 1 – 3 | 2.0 – 4.0 | 2.5 – 3.0 | ≥ 3 |
| Adjustable Height & Span | 0.5 – 2 | 1.5 – 4.0 | 2 – 3.0 | ≥ 1.5 |
| Foldable Type | 0.25 – 1 | 1.5 – 4.0 | 2 – 3.0 | ≥ 1.5 |
All specifications can be tailored according to working height, span width, and load requirements.
Typical Application Industries
1 Warehouse Aisle Handling

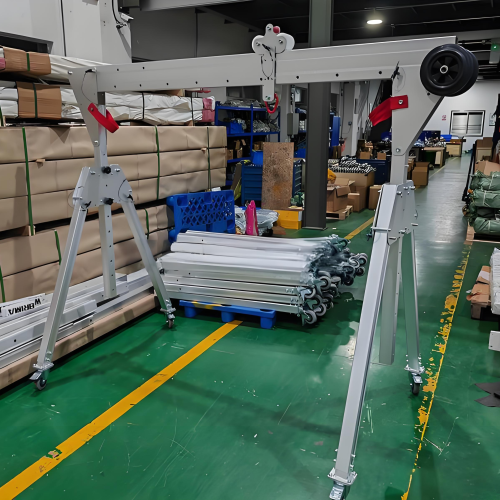

In narrow storage aisles, the mobile aluminum gantry crane can move freely between shelves, enabling fast and safe cargo transfer.
3 Temporary Worksites
With a low headroom design, this crane efficiently operates in basements, tunnels, or mezzanine workshops where large cranes cannot fit.
1 Main Types and Their Applications

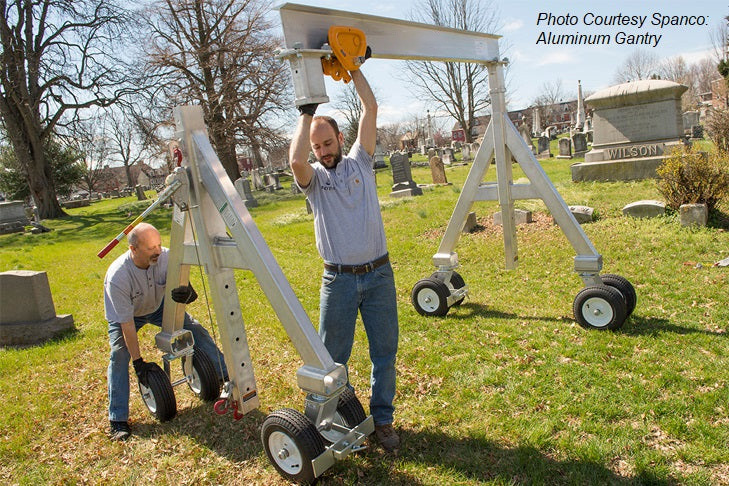

Ideal for construction material handling, equipment relocation, or exhibition setup, where portability and quick installation are crucial.
4 Underground Maintenance

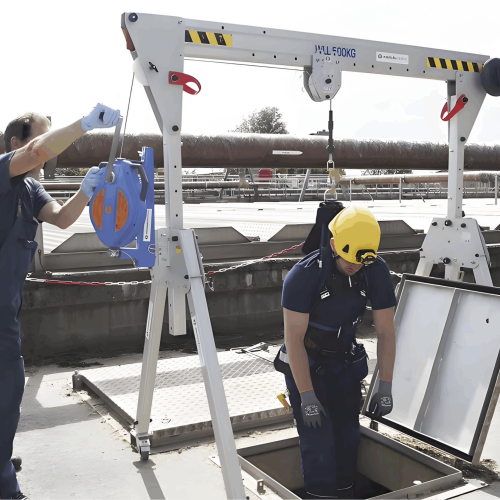

Perfect for underground pipelines, cable wells, or utility shafts, where equipment must be lifted vertically through confined spaces.
Aluminum vs. Traditional Steel Gantry Cranes
| Feature | Aluminum Portable Gantry Crane | Steel Gantry Crane |
|---|---|---|
| Weight | Lightweight (≈ 60 % less) | Heavy |
| Installation | Quick and tool-free | Complex, professional setup |
| Mobility | Easy to move on casters | Usually fixed in place |
| Adjustability | Adjustable span / height | Typically fixed |
| Space Requirement | Operates in narrow aisles (> 1.2 m) | Needs wide open space |
| Cost Efficiency | High (no foundation needed) | Lower (installation cost) |
By choosing an aluminum portable gantry crane, users can reduce installation time, transportation cost, and maintenance effort while improving workspace flexibility.
Learn more about the evolution of modern gantry systems in our article The Future of Foundry Overhead Crane Trends & Innovations.
7. Conclusion
The portable aluminum gantry crane embodies the modern principle of “lightweight, flexible, and efficient lifting.”
Its modular structure, adjustable height, and superior mobility make it the perfect solution for warehouses, workshops, temporary construction sites, and underground facilities.
By replacing conventional steel systems with corrosion-resistant aluminum cranes, companies can achieve greater efficiency and lower costs without compromising safety.
Explore more at SLKJCrane.com, your trusted aluminum gantry crane manufacturer and custom lifting equipment expert.
