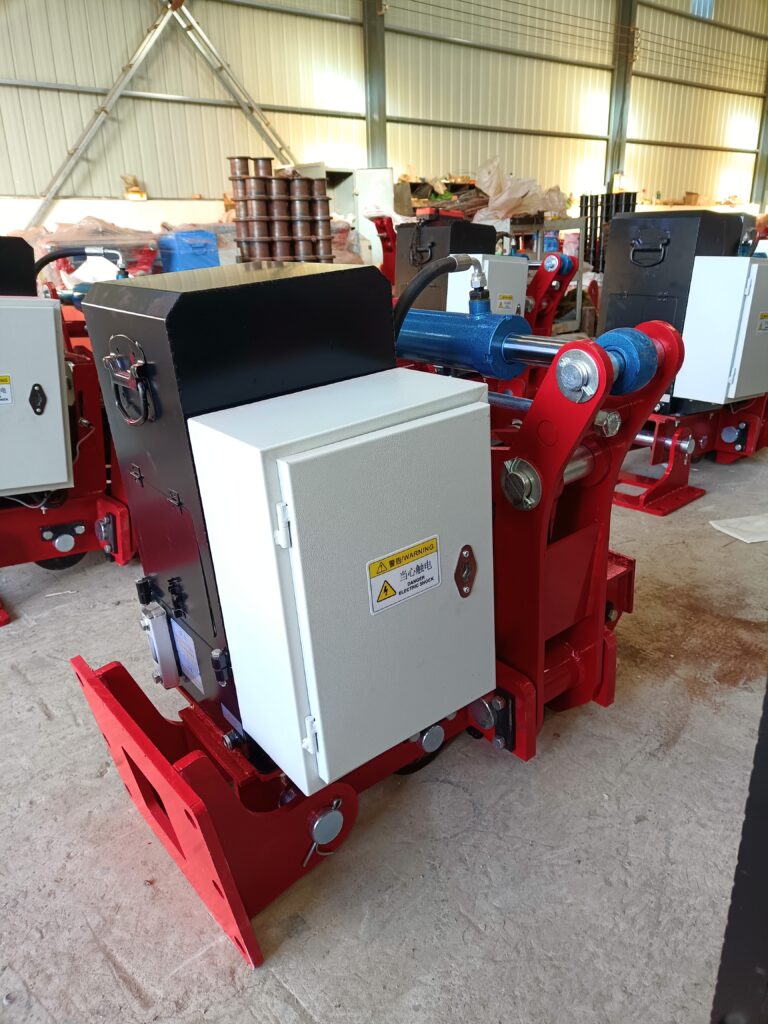

Modern hydraulic rail clamps integrate balancing mechanisms through three key technical approaches:

Force Distribution Architecture

Dual-acting cylinders with pressure-equalizing valves maintain ±3% force variance between clamp arms
Spring-loaded failsafe systems provide baseline clamping force (typically 15-20kN) when hydraulic pressure drops

Dynamic Load Compensation

Real-time pressure sensors adjust clamping force based on:
- Equipment weight distribution (25-100 ton cranes)
- Environmental factors (wind speeds up to 20m/s)
- Rail surface conditions (wet/dry friction coefficients)

Motion Synchronization

Electro-hydraulic servo systems achieve <0.5mm positional synchronization between multiple clamps
PLC-controlled sequencing ensures balanced engagement/disengagement timing (±50ms tolerance)

Safety-Critical Balance Features

ComponentBalance FunctionPerformance StandardTapered wedgesSelf-centering alignmentDIN 15435-1Accumulator banksPressure stabilizationISO 4413 Class CLoad-sensing valvesAdaptive force regulationEN 15746-2

Operational Data Highlights：

37% reduction in rail wear through balanced clamping distribution
92% improvement in anti-slip performance compared to mechanical systems
5-second emergency release capability while maintaining balance

Maintenance Considerations

Monthly pressure balance verification (recommended 250-300 bar operating range)
Quarterly wedge alignment checks (<0.2mm runout tolerance)
Annual hydraulic fluid analysis for viscosity consistency

This integrated approach demonstrates how modern balancing systems transform hydraulic rail clamps from simple holding devices into intelligent load management systems.
