Portable Gantry Cranes: Revolutionizing Lightweight Lifting Solutions

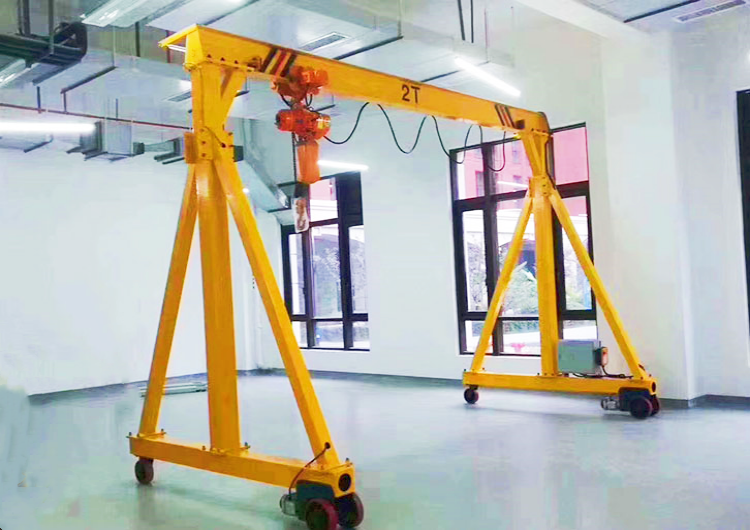

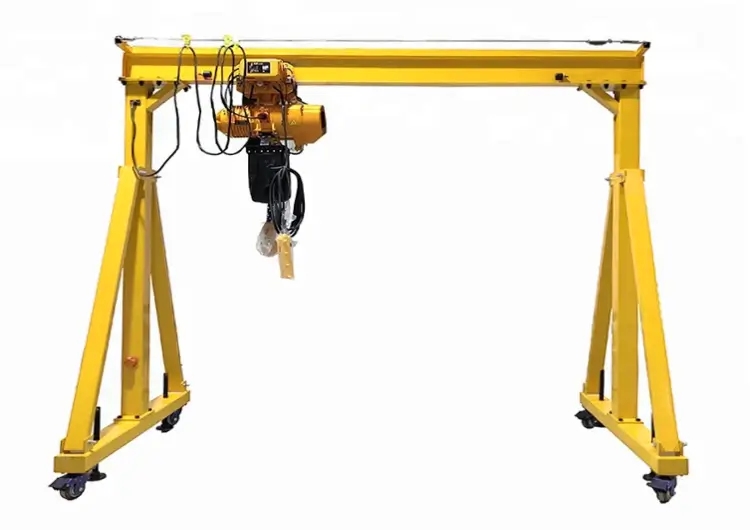

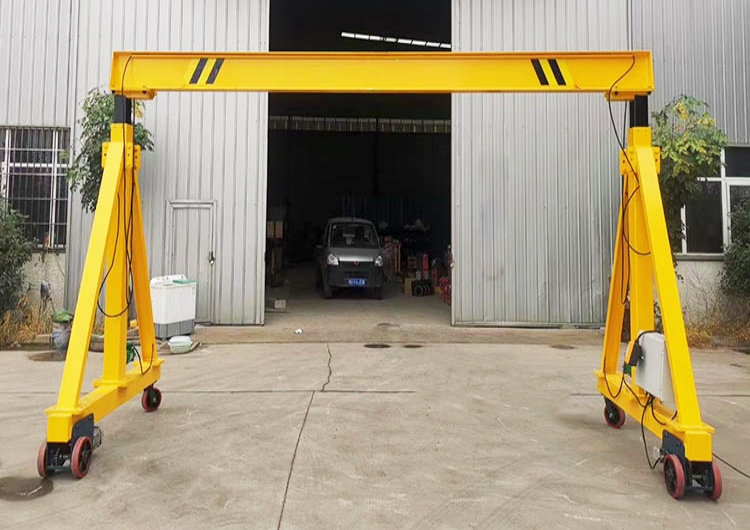

In today’s fast-paced industrial and logistics sectors, efficiency and flexibility are paramount. Portable gantry cranes have emerged as a game changer for businesses seeking agile, cost-effective, and safe lifting solutions. Designed for easy assembly, transport, and storage, these cranes empower industries to tackle heavy lifting tasks without the constraints of traditional fixed systems. In this article, we delve into the key features, diverse applications, and advantages of portable gantry cranes, along with tips for selecting the right model for your needs.
Why Choose Portable Gantry Cranes?
Portable gantry cranes are engineered to address the limitations of conventional overhead cranes. Here’s what sets them apart:
1. Lightweight & Compact Design
- Material Innovation: Constructed from high-strength aluminum or galvanized steel, these cranes are up to 50% lighter than traditional models while maintaining robust load-bearing capacity.
- Foldable Structure: Most models can be disassembled or folded into compact units, reducing storage space by 60–80% and enabling transport in standard vehicles.
2. Rapid Assembly & Versatility
- Modular Components: Bolt-together designs with standardized connectors allow setup in under 15 minutes, requiring no specialized tools or technical expertise.
- Adjustable Configurations: Customize height, span, and load capacity (typically 1–10 tons) to adapt to workshops, warehouses, construction sites, or even outdoor events.
3. Enhanced Safety & Control
- Built-In Safety Features: Overload protection, anti-slip hooks, and emergency braking systems ensure compliance with OSHA and ISO standards.
- Precision Control: Options for manual push trolleys, electric hoists, or wireless remote controls enable millimeter-level accuracy for delicate operations.
4. Cost Efficiency
- Lower Initial Investment: Eliminate the need for permanent infrastructure (e.g., reinforced flooring or ceiling supports), slashing upfront costs by 30–50%.
- Minimal Maintenance: Corrosion-resistant materials and sealed bearings reduce long-term upkeep expenses.
Applications Across Industries
Portable gantry cranes excel in dynamic environments where mobility and adaptability are critical:
- Manufacturing: Move machinery parts, molds, or assembly line components in tight factory spaces.
- Warehousing & Logistics: Load/unload pallets, containers, or heavy equipment without relying on fixed crane systems.
- Construction Sites: Lift steel beams, concrete panels, or tools in temporary or remote locations.
- Automotive Repair: Safely hoist engines, transmissions, or vehicle bodies in repair shops.
- Events & Film Production: Assemble stages, rig lighting, or transport props with minimal setup time.

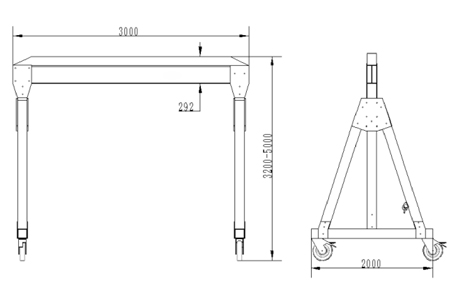

Technical Specifications to Consider
When selecting a portable gantry crane, evaluate these parameters:
| Feature | Specifications |
|---|---|
| Load Capacity | 1–10 tons (standard range); custom options available. |
| Span | 2–10 meters (adjustable for different workspace widths). |
| Lifting Height | 3–6 meters (extendable with optional vertical beams). |
| Material | Aluminum (lightweight) or steel (heavy-duty); galvanized or powder-coated finishes. |
| Mobility | Swivel casters with brakes; some models include tow hitch attachments. |
| Power Options | Manual, electric, or pneumatic hoists; battery-operated remote controls. |
Customer Success Stories
Case 1: Automotive Workshop
“We replaced our fixed crane with a portable gantry model. The adjustable height and span let us work on multiple vehicle types, and folding it up freed 70% of our floor space.” – Mike T., Workshop Manager.
Case 2: Logistics Provider
“During peak seasons, we deploy portable cranes across our warehouses. They’re easy to move between sites and handle 5-ton loads effortlessly.” – Sarah L., Operations Director.
How to Select the Right Model
- Assess Load Requirements: Choose a crane with 20% higher capacity than your maximum expected load to ensure safety margins.
- Evaluate Workspace Constraints: Opt for adjustable spans and heights if operating in variable environments.
- Prioritize Durability: For outdoor use, select weather-resistant coatings and sealed electrical components.
- Verify Certifications: Ensure compliance with CE, ANSI, or ISO standards for international operations.
Why Partner With Us?
- Custom Solutions: Tailor cranes to your unique load, space, and power needs.
- Global Compliance: All products meet OSHA, ISO 4301, and FEM 9.751 safety standards.
- Lifetime Support: Comprehensive warranties, spare parts availability, and 24/7 technical assistance.
