Port Cranes: A Comprehensive Analysis of Types Structures and Applications
Port cranes are the backbone of global maritime trade, enabling the rapid loading and unloading of cargo across ships, trucks, and storage yards. This article provides an in-depth analysis of port crane types, structural components, industrial applications, and emerging trends, offering actionable insights for logistics managers, port operators, and engineering professionals.
Major Types of Port Cranes
A. Container-Handling Cranes

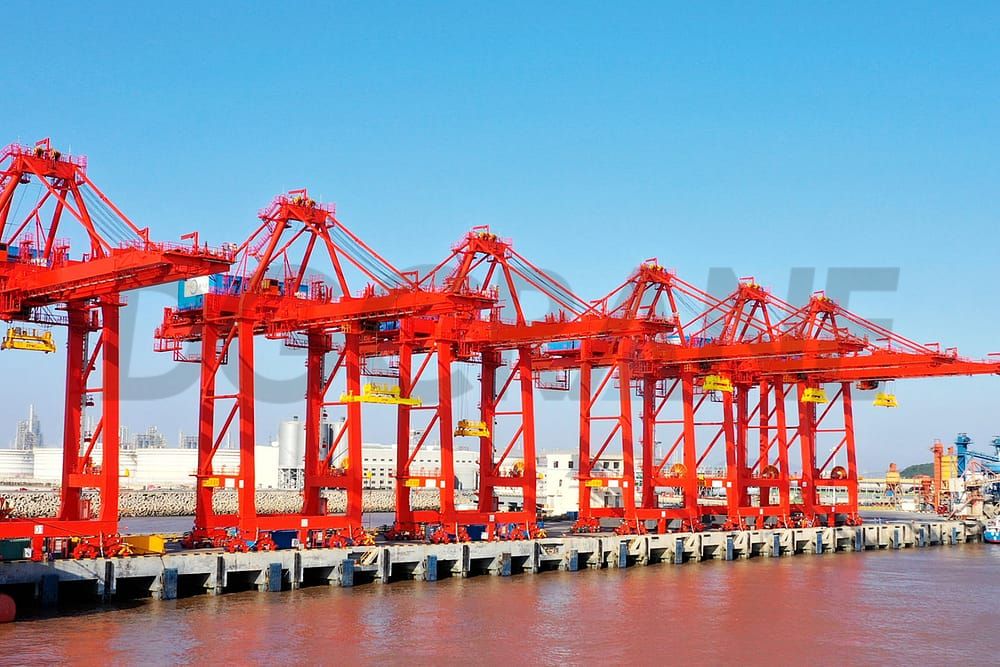

Ship-to-Shore (STS) Cranes
- Structure: High-profile, rail-mounted gantry with cantilevered booms.
- Capacity: 50–100 tons (up to 24 containers wide).
- Applications: Loading/unloading ultra-large container ships (ULCS).
- Key Feature: Automated trolley systems for precision.
Rubber-Tired Gantry (RTG) Cranes
- Structure: Mobile gantry with rubber tires and spreader beams.
- Capacity: 40–50 tons per container.
- Applications: Stacking containers in yard areas.
- Key Feature: Eco-friendly hybrid power options.

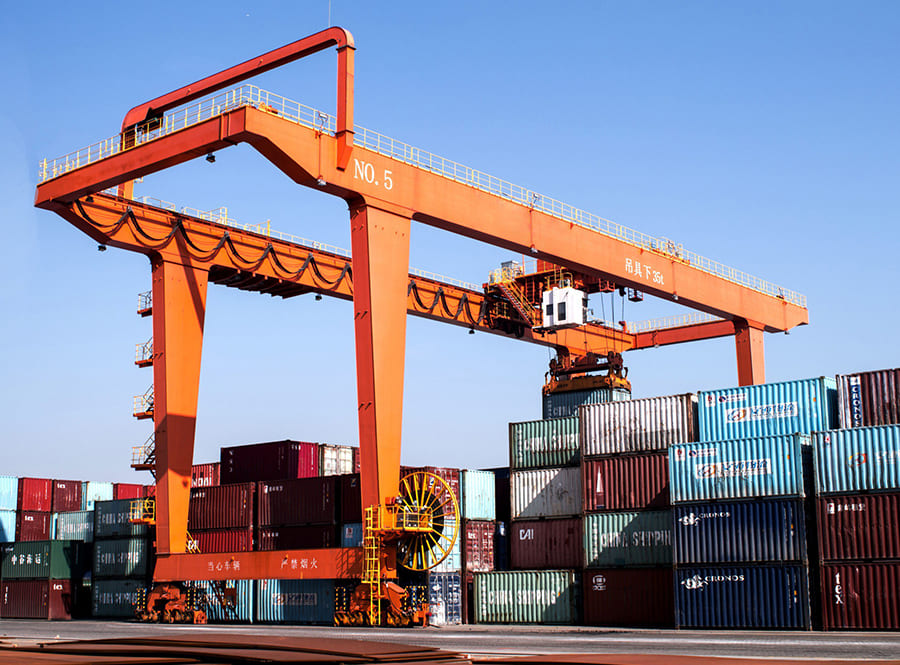

Rail-Mounted Gantry (RMG) Cranes
- Structure: Electrified gantry moving on fixed rails.
- Capacity: 50–100 tons.
- Applications: High-density container storage and rail transfers.
- Key Feature: Energy-efficient regenerative braking.

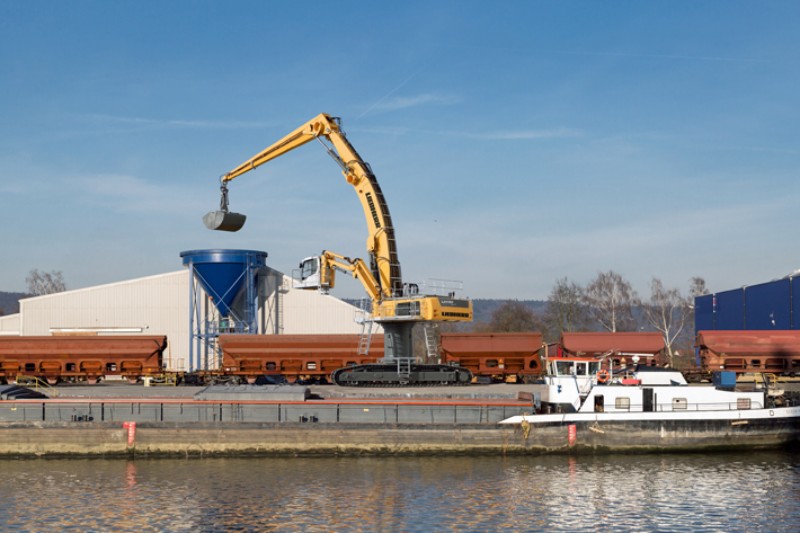

B. Bulk Material Cranes
Grab Ship Unloaders
- Structure: Slewing jib with clamshell grabs.
- Capacity: 1,000–2,500 tons/hour.
- Applications: Coal, grain, and ore handling.
Bucket Wheel Stackers/Reclaimers
- Structure: Rotating bucket wheels on long booms.
- Capacity: Up to 10,000 tons/hour.
- Applications: Stockpiling bulk materials.
C. Multipurpose Cranes
Floating Cranes
- Structure: Barge-mounted cranes with 360° rotation.
- Capacity: 200–2,000+ tons.
- Applications: Offshore construction, salvage operations.
Mobile Harbor Cranes
- Structure: Hydraulic booms on mobile chassis.
- Capacity: 100–300 tons.
- Applications: Mixed cargo handling in small ports.
Core Structural Components of Port Cranes
A. Load-Bearing Framework
- Main Girder: Box-girder or truss designs for strength and rigidity.
- A-Frame Legs: Reinforced steel legs supporting vertical and lateral loads.
- Trolley and Hoist System:
- Wire Ropes: High-tensile steel ropes for lifting.
- Spreader: Adjustable twistlocks for container compatibility.
B. Motion Systems
- Travel Mechanisms:
- Rail wheels (STS/RMG) or rubber tires (RTG).
- GPS-guided automation for collision avoidance.
- Slewing System:
- Slewing bearings for 360° rotation (floating cranes).
C. Power and Control
- Electric Drives: AC/DC motors with variable frequency drives (VFDs).
- Smart Control Cabin:
- PLCs for automated workflows.
- AI-powered predictive maintenance alerts.
Applications Across Port Operations
A. Container Terminals
- STS Cranes: Dock-to-ship transfers for Panamax and Post-Panamax vessels.
- RTGs: Yard organization with 6–8 container stacking tiers.
B. Dry Bulk Terminals
- Ship Loaders: Continuous bulk loading via conveyor-belt integration.
- Bucket Wheel Machines: Blending iron ore for steel production.
C. Breakbulk and Ro-Ro Terminals
- Floating Cranes: Heavy-lift operations for wind turbine components.
- Mobile Cranes: Handling vehicles, machinery, and project cargo.
Emerging Trends in Port Crane Technology
- Automation: Remote-controlled STS cranes with LiDAR obstacle detection.
- Sustainability: Hydrogen fuel cells for zero-emission RTGs.
- Digital Twins: 3D modeling for crane performance optimization.
Choosing the Right Port Crane: Key Considerations
- Cargo Volume: High-throughput terminals require automated STS/RMG systems.
- Space Constraints: RTGs suit compact yards; STS cranes need deep berths.
- Budget: Hybrid RTGs reduce long-term energy costs.
