The Characteristics of Low Headroom Crane
In industrial and construction environments where vertical space is limited, Low Headroom Cranes (LHCs) have become indispensable tools for optimizing workflow efficiency and safety. These cranes are specifically engineered to operate in confined spaces without compromising lifting capacity or precision. Below, we explore the key characteristics that make low headroom cranes a vital solution for modern material handling challenges.
1. Compact Design for Vertical Space Optimization

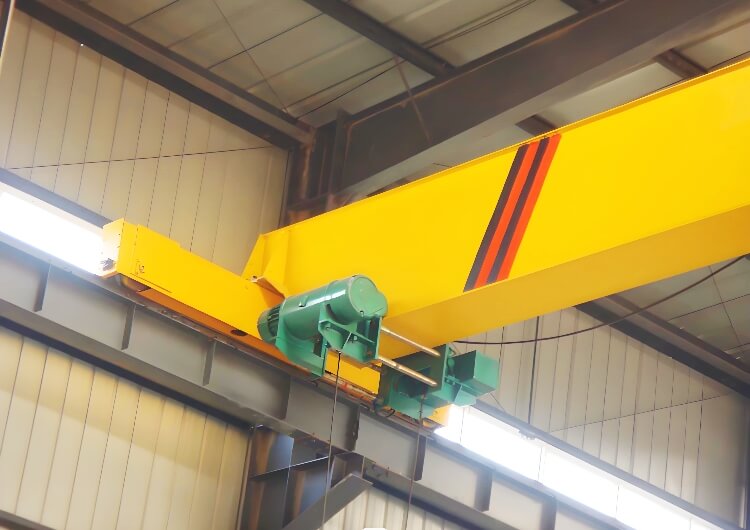

Low headroom cranes are distinguished by their minimal vertical profile. Unlike traditional overhead cranes that require significant clearance for hoist and trolley systems, LHCs integrate the hoist directly into the bridge beam. This design eliminates the need for extra space above the lifting path, making them ideal for:
- Low-ceiling facilities (e.g., warehouses, workshops, and small factories).
- Multi-level structures where floor-to-ceiling height is restricted.
- Retrofitting projects in existing buildings with strict height limitations.
The reduced headroom requirement can save up to 30% of vertical space, enabling operations in environments where conventional cranes cannot function.
2. Underslung Configuration for Maximum Flexibility

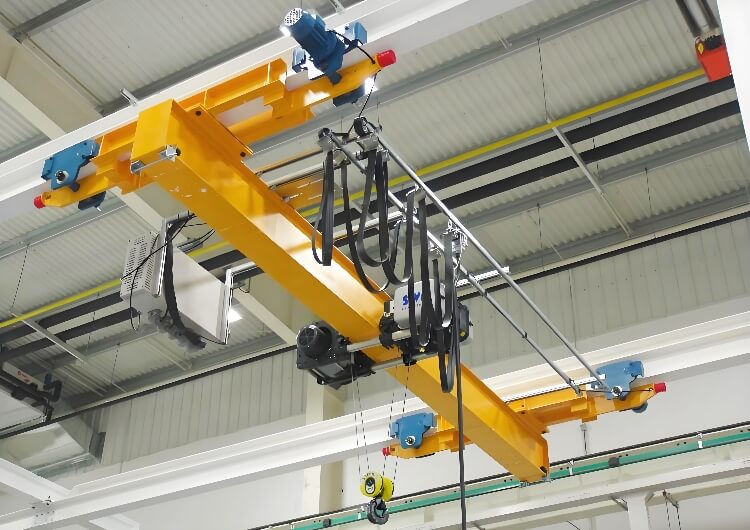

Most low headroom cranes adopt an underslung trolley system, where the hoist moves along the bottom flange of the bridge beam. This configuration offers several advantages:
- Enhanced maneuverability: The trolley can traverse the entire span without height interference.
- Higher hook height: Maximizes usable lifting range beneath the crane.
- Adaptability to irregular layouts: Suitable for facilities with obstacles like pipes, ducts, or machinery.
For ultra-tight spaces, modular designs allow customization of bridge spans, lifting speeds, and control systems (e.g., pendant, radio remote, or fully automated).
3. Robust Construction and Load Capacity
Despite their compact size, low headroom cranes are built to handle heavy-duty tasks. Key structural features include:
- High-strength steel beams: Reinforced to resist deflection under load.
- Dual-girder or single-girder configurations: Dual-girder models support capacities up to 20 tons, while single-girder options are ideal for lighter loads (1 – 10 tons).
- Corrosion-resistant coatings: Essential for humid or chemically aggressive environments like shipyards or food processing plants.
Advanced models also incorporate variable frequency drives (VFDs) for smooth acceleration/deceleration, reducing load swing and wear on components.
4. Energy Efficiency and Smart Controls
Modern low headroom cranes prioritize sustainability and automation:
- Regenerative braking systems: Convert kinetic energy into reusable electricity, cutting energy costs by up to 25%.
- IoT-enabled monitoring: Sensors track parameters like load weight, motor temperature, and maintenance schedules, enabling predictive upkeep.
- Anti-collision systems: Laser or RFID-based technologies prevent accidents in multi-crane installations.
5. Compliance with Global Safety Standards
Low headroom cranes adhere to stringent certifications, including:
- ISO 9001 (Quality Management).
- FEM 1.001 (European design standards for hoists).
- OSHA/ANSI (Workplace safety compliance in North America).
Critical safety components include overload limiters, emergency stop buttons, and fail-safe brakes.
Applications Across Industries
Low headroom cranes excel in sectors where space and precision matter:
- Manufacturing: Assembly lines, automotive plants.
- Logistics: Compact warehouses, cross-docking facilities.
- Marine: Ship engine rooms, dry docks.
- Aerospace: Component handling in low-ceiling hangars.
Conclusion
Low headroom cranes combine space saving design, heavy duty performance, and smart technology to address the challenges of modern industrial spaces. Whether upgrading an existing facility or designing a new one, these cranes offer a future-proof solution for maximizing productivity in vertically constrained environments.
