Semi Gantry Crane Structure Components Key Parts Explained
Semi gantry cranes, also known as partial gantry cranes, are versatile lifting machines widely used in workshops, warehouses, and outdoor environments. Their unique “half-gantry” design combines the flexibility of overhead cranes and the stability of full gantry cranes. In this guide, we’ll break down the core components of a semi-gantry crane and explain how they work together to ensure efficient material handling.
Key Structural Components of a Semi-Gantry Crane
1. Main Girder (Bridge Beam)
The main girder is the backbone of the crane, directly bearing the load. It comes in three common designs:
- Box Girder: Heavy-duty structure with high rigidity for heavy loads (e.g., steel coils, machinery).
- I-Beam Girder: Lightweight and cost-effective for medium-duty applications.
- Truss Girder: Open-frame design ideal for long spans and outdoor use.
Semi-gantry cranes often use a single girder to reduce weight while maintaining strength.
2. Legs/Support Columns

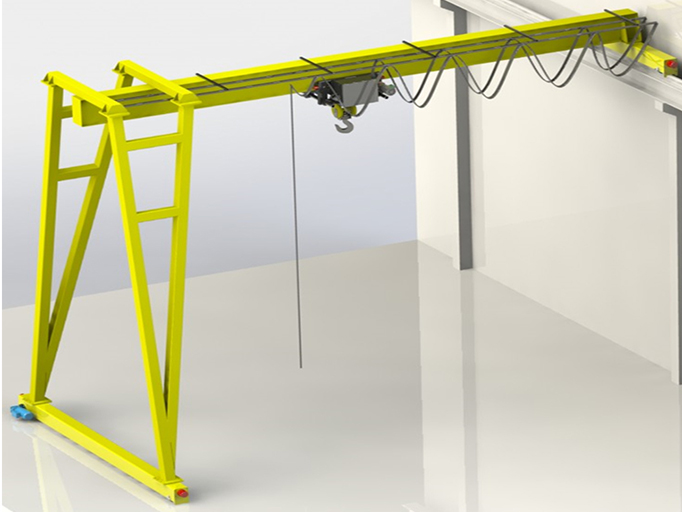

Unlike full gantry cranes, semi-gantry cranes have one fixed leg and one movable leg:
- Fixed Leg: Anchored to the ground via bolts or concrete foundations for stability.
- Movable Leg: Equipped with wheels or rails to allow lateral movement, adapting to uneven terrain.
3. Cantilever Arm (Outrigger)
The cantilever arm extends horizontally from the fixed leg, providing extended reach without additional support. It is often reinforced with diagonal braces to handle off-center loads.
4. Hoisting Mechanism
- Electric Hoist: A motor-driven system with chains/wire ropes for vertical lifting.
- Trolley: Moves along the girder to position loads precisely.
- Hook/Clamp: Customizable attachments for specific materials (e.g., magnets for steel plates).
5. Runway and Rail System
The runway rails guide the crane’s movement. Semi-gantry cranes typically use:
- Ground-Mounted Rails: Low-cost and easy to install.
- Overhead Rails: Maximize floor space in compact facilities.
6. Electrical Control System
- Variable Frequency Drives (VFDs): Enable smooth acceleration and precise load positioning.
- Remote Control/Pendant: Operators can control the crane wirelessly or via a handheld device.
- Safety Features: Overload sensors, emergency stops, and limit switches.
Why Choose a Semi Gantry Crane?
- Space Efficiency: Ideal for facilities with limited headroom or obstacles (e.g., pillars).
- Cost Savings: Requires fewer supports than overhead cranes.
- Adaptability: Adjustable legs accommodate uneven floors or slopes.
