Harsh Environment Overhead & Gantry Cranes: Dust-Proof, High/Low Temperature & Anti-Corrosion Packages
Why harsh environments demand specialized cranes
Dust-laden cement and mining plants, 200°C radiant heat in foundries, sub-zero cold storage, and salt-spray coastal yards each attack crane components differently. A “standard” configuration often fails early—galling bearings, moisture-soaked cabinets, or fast-rusting structures drive up downtime and life-cycle cost. SLKJCrane engineers package cranes for these extremes, matching IP protection, materials/coatings, lubrication, controls, and geometry (e.g., low headroom) to your site constraints.
-
Tight vertical clearance? See our low-headroom overhead cranes and LDP electric single-girder solution:
→ Low-Headroom Overhead Cranes • LDP Single-Girder Low-Headroom -
High-temperature foundry bays? Explore future-proof ideas for ladle/charging cranes:
→ The Future of Foundry Overhead Cranes -
Bulk materials or scrap? Grabs and magnets need targeted maintenance & duty-class sizing:
→ Grab Crane Maintenance Guide • Magnetic Overhead Crane
Quick selection matrix (environment → recommended package)
| Environment | Typical issues | Design focus | Package highlights |
|---|---|---|---|
| Heavy Dust (cement, mining, grain) | Abrasive ingress, clogged cooling, sensor fouling | Sealing + filtration | IP55–IP65 drives, sealed gearboxes, pressurized cabinets, labyrinth seals; cable glands; filtered intake; anti-dust limit switches; grab-ready duty classes (FEM 2m–3m). See: Grab Crane Maintenance Guide. |
| High Temp (up to 200 °C radiant) foundry/steel | Insulation aging, grease breakdown, heat-soak | Thermal packages + shielding | Heat-resistant cabling, radiant shields, high-temp grease, dual brakes, overspeed/anti-sway; ladle hooks; auxiliary hoist for precise teeming. Ideas: Future of Foundry Cranes. |
| Low Temp (−20 ~ −40 °C) cold chain | Condensation, brittle plastics, viscosity rise | Anti-condensation + low-temp ratings | Anti-condensation heaters, IP-rated cabinets, low-temp VFDs/encoders, LV cables rated to −40 °C; cold-start torque logic; low-headroom geometry to fit chilled rooms: LDP Low-Headroom. |
| Corrosive (C3–C5-M) coastal/chemical | Rust, paint failure, fastener seizure | Coatings + materials | Shot-blast SA2.5, zinc-rich epoxy + PU topcoat or hot-dip galvanizing (select parts), stainless hardware, marine-grade junction boxes; periodic wash-down plan. |
| Ferrous scrap/coil handling | Shock, cycle peaks; safety | Tooling + sensing | Scrap handling with grabs; steel coil slabs/billets with magnetic beams; load cells, end-point soft land, overload alarms. See: Magnetic Overhead Crane. |
Engineering packages that actually survive
1) Dust-proof design for cement, mining & bulk yards
Abrasive dust infiltrates gear stages and bearings. We deploy sealed gearboxes, IP-rated motors, filtered/pressurized electrical cabinets, metal-mesh breathers, and dust-tolerant limit devices. On bulk yards, pairing the trolley with a grab requires correct duty group (FEM/ISO) and a maintenance regime tuned to wire rope, sheaves, and pins—use our grab crane maintenance guide to extend service intervals.

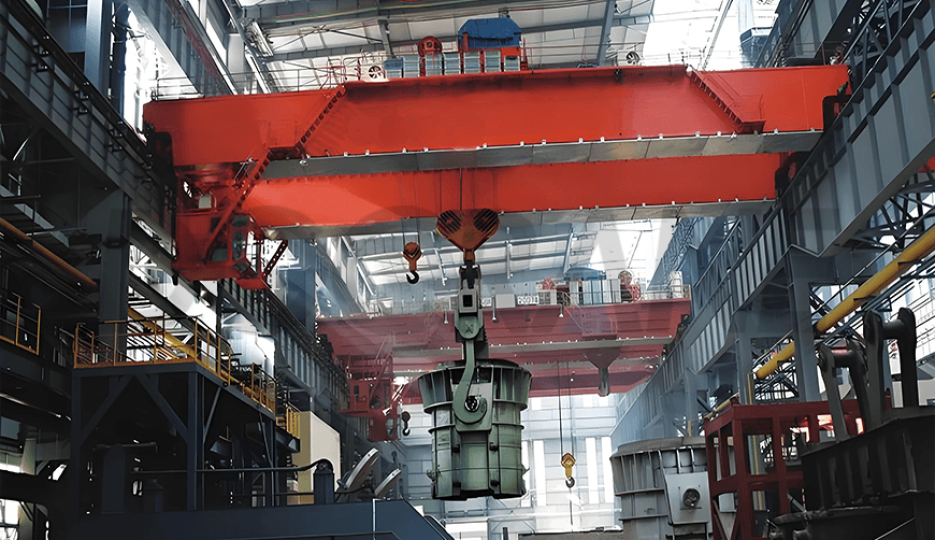

2) High-temperature packages for foundry & steel
Radiant heat cooks insulation and grease. Our foundry builds integrate heat shields, high-temp cable sets, dual braking on hoist, overspeed and anti-sway controls for precise teeming, plus auxiliary hoists for hooks & ladles. See forward-looking controls and safety upgrades in The Future of Foundry Overhead Cranes.
3) Low-temperature and condensation control
In −20 ~ −40 °C rooms, condensation and slow fluids are killers. We specify cabinet heaters, conformal-coated PCBs, low-temp-rated lubricants, and startup torque strategies in VFDs. Where the ceiling is low, our LDP single-girder low-headroom profile maximizes hook travel without rebuilding the bay:
→ LDP Low-Headroom • Low-Headroom Overhead Cranes
) Tooling for ferrous handling: magnets & grabs
For coils, billets, plates, or scrap, we integrate magnetic beams and power supplies with redundant drop-prevention logic, soft-start/soft-land, and load monitoring—see our Magnetic Overhead Crane. For bulk materials, orange-peel or clamshell grabs plus torque-heavy trolleys are sized to the real cycle time, not brochure duty.
Controls, safety & compliance (FEM / ISO / GB/T)
-
Duty classification aligned to FEM/ISO, hoist/trolley/end-truck sized for true cycle time, not nameplate load only.
-
Dual safety lines for critical motions (e.g., dual brakes on hoist for ladle service).
-
Smart controls: anti-sway, speed-matching, soft limits, predictive alarms (bearing temp, motor current).
-
Documented inspection & lubrication plans—a necessity in hot, dusty, or marine sites.
Case snapshots (MENA & SEA)
-
GCC coastal fabrication yard: 50 t double-girder with C5-M coating stack, stainless hardware, and HDG accessories; wash-down maintenance circle set at 8-week cadence.
-
Vietnam cold-chain warehouse: 10 t low-headroom single-girder with cabinet heaters and −40 °C harness set; anti-condensation logic reduced nuisance trips by 70%.
-
Philippines cement mill: 20 t grab crane with IP65 trolley, sealed encoders, and dust-filtered intake; rope/sheave PM extended to 1,200 h between services.
Maintenance that protects uptime
Even the best package needs routine. For dust/heat sites, we set shorter first-interval inspections to “learn” the environment, then extend. For grabs/magnets, see our Grab Crane Maintenance Guide for rope equalization, sheave groove checks, and hydraulic line inspection.
Ready to specify?
Share your environment (dust/heat/cold/corrosion), duty class, bay height, span, and tooling (grab/magnet). We’ll return a risk-reduced package + drawings + a service plan.
