20 Ton European Standard Gantry Crane Delivered to Chile Precast Beam Factory
A precast concrete beam manufacturer in Chile recently chose our 20 ton European standard electric hoist gantry crane to upgrade their heavy lifting system. Thanks to a fully customized solution and strict quality control from design to delivery, the crane now supports their high-frequency beam handling work while also enhancing the overall image of the plant for visiting clients.
Project Overview – 20t Gantry Crane for Precast Beam Production in Chile
-
Project location: Chile
-
Application: Precast concrete beam factory
-
Crane type: MH 20t European standard electric hoist gantry crane
-
Rated capacity: 20 tons
-
Span: 15 m
-
Lifting height: 15 m
-
Working duty: A5 (for frequent, heavy-duty operation)
-
Power supply: 380 V, 50 Hz, 3-phase
-
Control mode: Wireless radio remote control
The customer needed a 20 ton gantry crane that could safely handle heavy precast beams every day while also looking neat and professional, because their factory often receives visitors, partners and end clients.
Customer Challenges & Core Requirements
The Chilean precast plant had two clear requirements:
1.High safety for frequent heavy lifting
-
Continuous lifting of heavy precast concrete beams
-
High working frequency and long travel distance
-
Need for reliable braking, stable operation and minimized downtime
2.Modern, clean appearance for factory visits
-
The crane would be installed in an area frequently shown to customers
-
Equipment needed to match the company’s professional image
-
Cables, platforms, handrails and painting all needed refined design
Our task was to design a 20 ton electric hoist gantry crane that not only met strict technical standards, but also blended into a modern, well-organized plant environment.
Technical Configuration – European Standard 20t Gantry Crane
To match both the working conditions and Chilean local standards, the crane was designed according to FEM European crane standards, focusing on durability, safety, and smooth operation.
Main Technical Parameters
-
Rated capacity: 20 t – suitable for heavy precast beams and concrete components
-
Span: 15 m – optimized according to the factory layout and beam storage area
-
Lifting height: 15 m – ensures enough clearance for lifting, rotating and stacking precast beams
-
Duty group A5:
-
Designed for intensive use
-
Supports frequent starts, stops and reversing without overheating
-
-
Power supply: 380 V / 50 Hz / 3-phase – fully compatible with Chile’s industrial power grid
-
Control: Wireless radio remote control
-
Operator can keep a safe distance from the load
-
Better visibility of load and surroundings
-
Reduced risk compared with pendant control
-
Key Structural & Electrical Features
-
European-style steel wire rope electric hoist for compact size, low noise and precise lifting
-
Optimized main girder and end carriage design to reduce dead weight while maintaining rigidity
-
Smooth frequency-controlled traveling (optional depending on final configuration) for more accurate positioning and reduced load swing
-
Overload protection, limit switches, emergency stop and phase failure protection to ensure safe operation
Customized Design – Safety and Aesthetics in One Solution
Based on on-site investigation and detailed communication with the customer, several customized upgrades were made:
1. Reinforced Safety Guardrail System
-
Robust guardrails added to the maintenance walkway and service areas
-
Clear access for inspection and maintenance personnel
-
Reduced risk of accidental falls during servicing
-
Conforms to modern safety concepts for industrial lifting equipment
2. Clean and Modern Appearance
Because the gantry crane is visible during factory visits, we:
-
Optimized overall structural proportions to look more compact and elegant
-
Standardized cable routing and component layout to reduce visual clutter
-
Applied a durable, bright industrial coating that resists fading and provides a clean appearance
The result is a 20 ton precast gantry crane that not only performs like a heavy-duty workhorse, but also enhances the overall look of the production workshop.
From Requirements to Delivery – Full Process Support
Our team provided end-to-end service from technical consultation to shipment.
Step 1 – In-Depth Requirement Analysis
-
Evaluated lifting frequency, beam dimensions, and load distribution
-
Checked available space, runway length and clearances in the precast yard
-
Verified local power supply and environmental conditions in Chile
Step 2 – Tailored Gantry Crane Proposal
-
Determined 20 t / 15 m span / 15 m lifting height as the optimal configuration
-
Defined working duty A5 to handle high-intensity daily operation
-
Selected wireless remote control to improve both safety and operating efficiency
-
Finalized details for guardrails, platforms, painting and labeling to meet both safety and aesthetic expectations
Step 3 – Manufacturing, Testing and Quality Control
-
All major steel structures fabricated according to strict welding and inspection standards
-
Electric hoist and electrical system tested before shipment
-
Complete crane pre-assembled and function-tested in our factory to ensure smooth lifting, traveling and safety protection
Step 4 – Professional Packing and Shipping to Chile
To protect the equipment during long-distance ocean transport, we adopted targeted packing solutions:
- covered with waterproof tarpaulin to prevent rain and corrosion
- fixed inside strong plywood cases to avoid impact damage
- sealed with rain covers and moisture protection

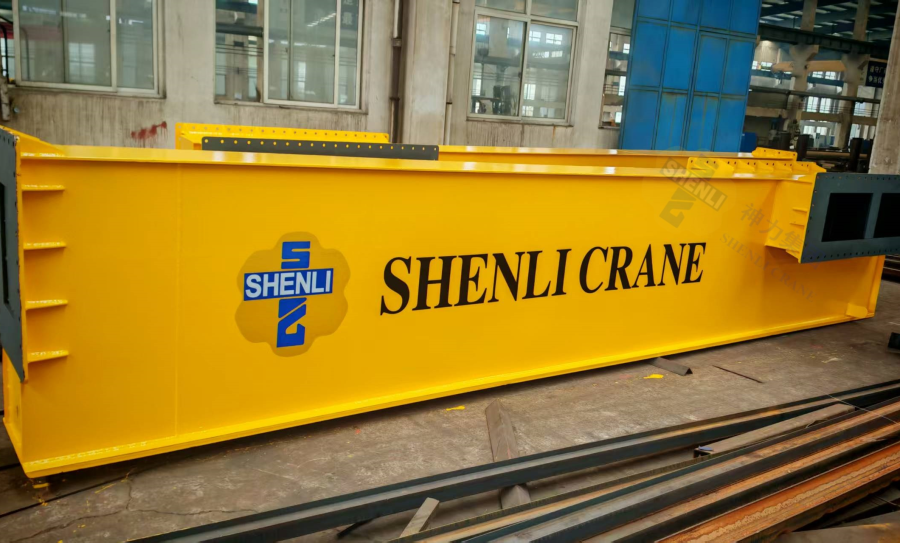

Main beam of electric gantry crane

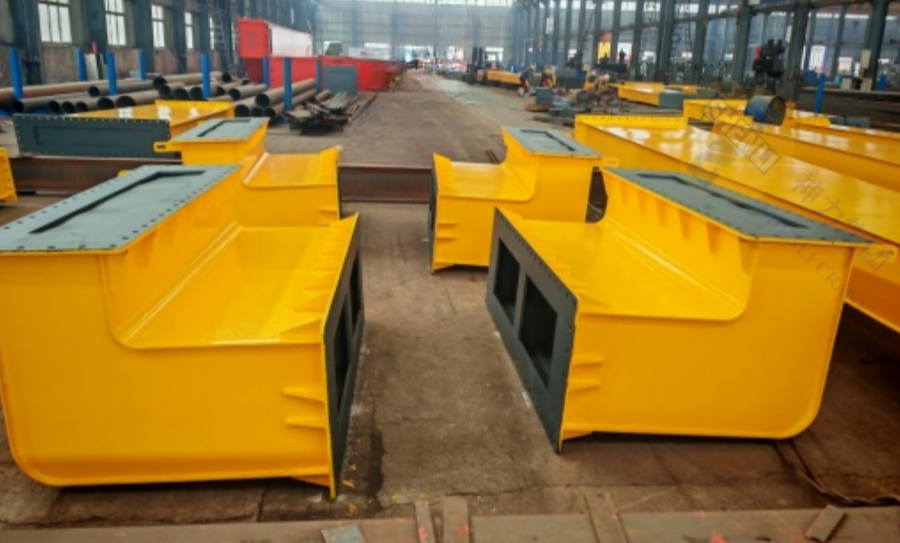

Electric gantry crane saddle

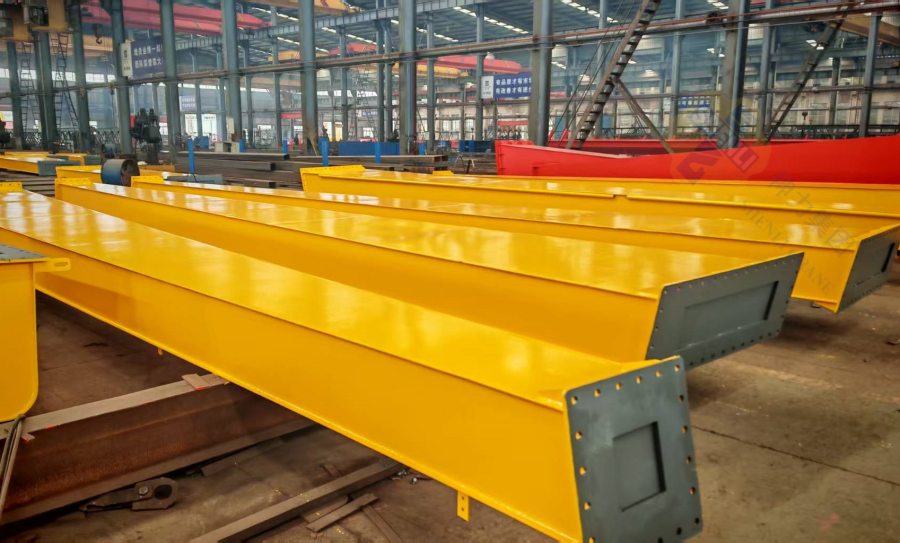

Support legs for electric gantry cranes

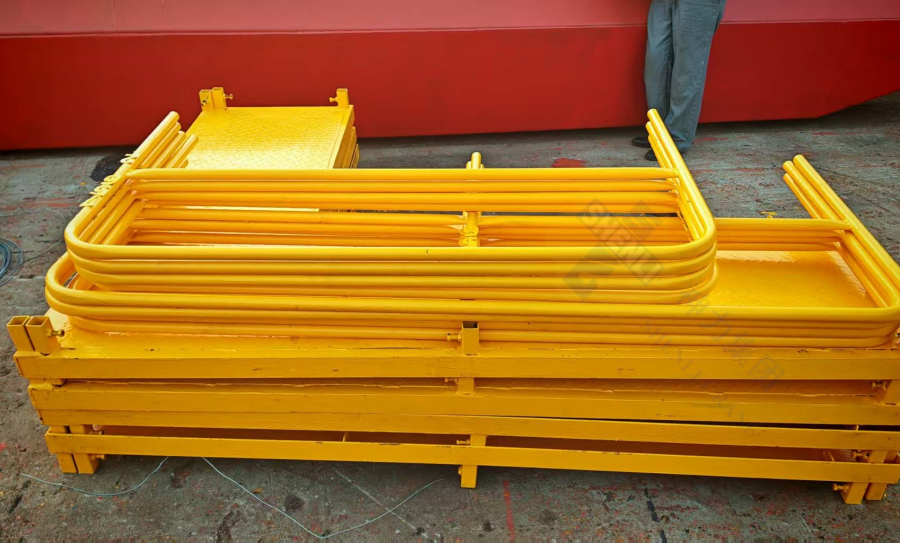

Safety guardrails for electric gantry cranes

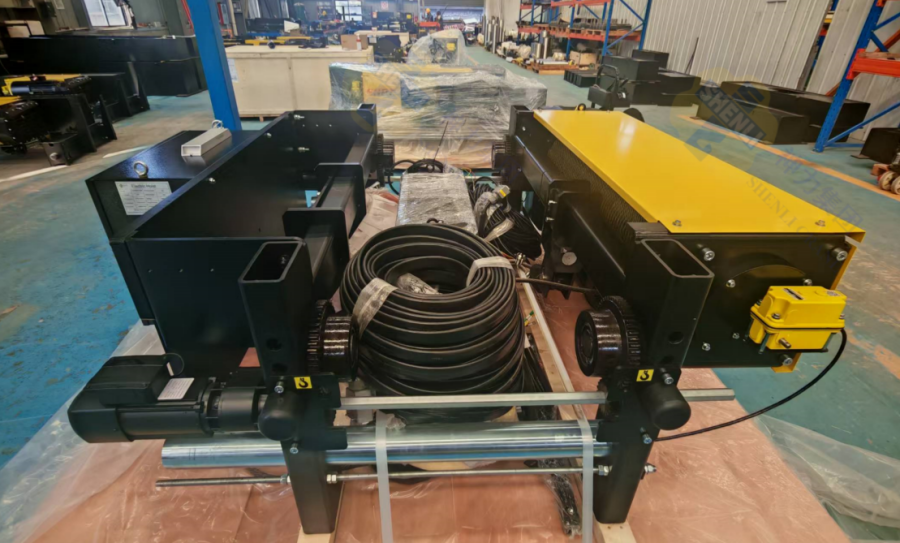

20t European style wire rope electric hoist

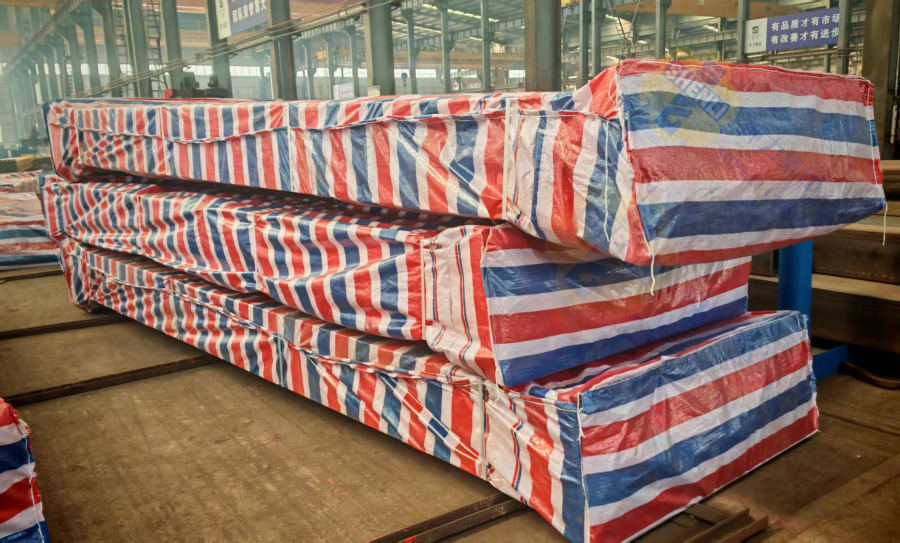

Packaged electric gantry crane outriggers

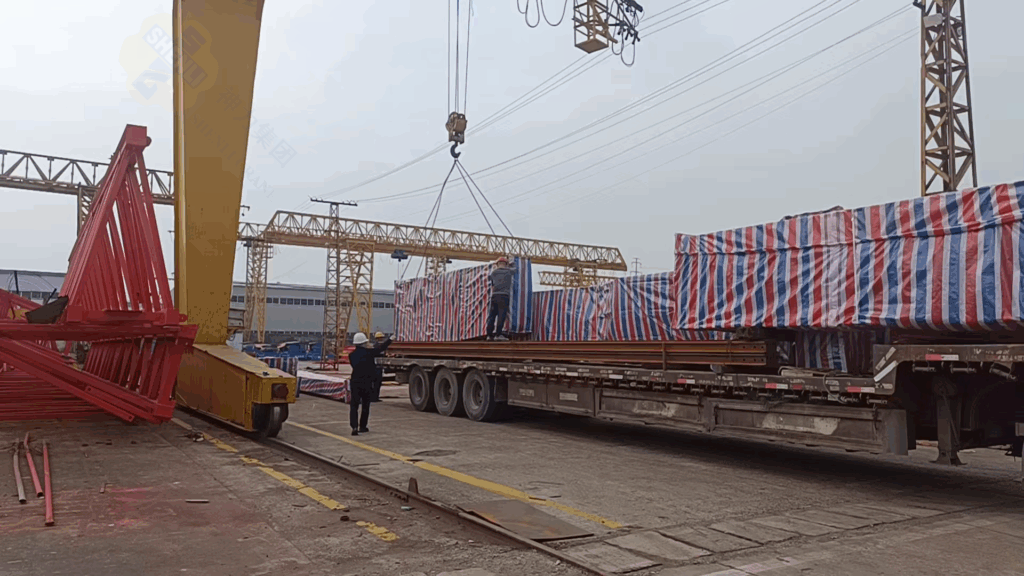

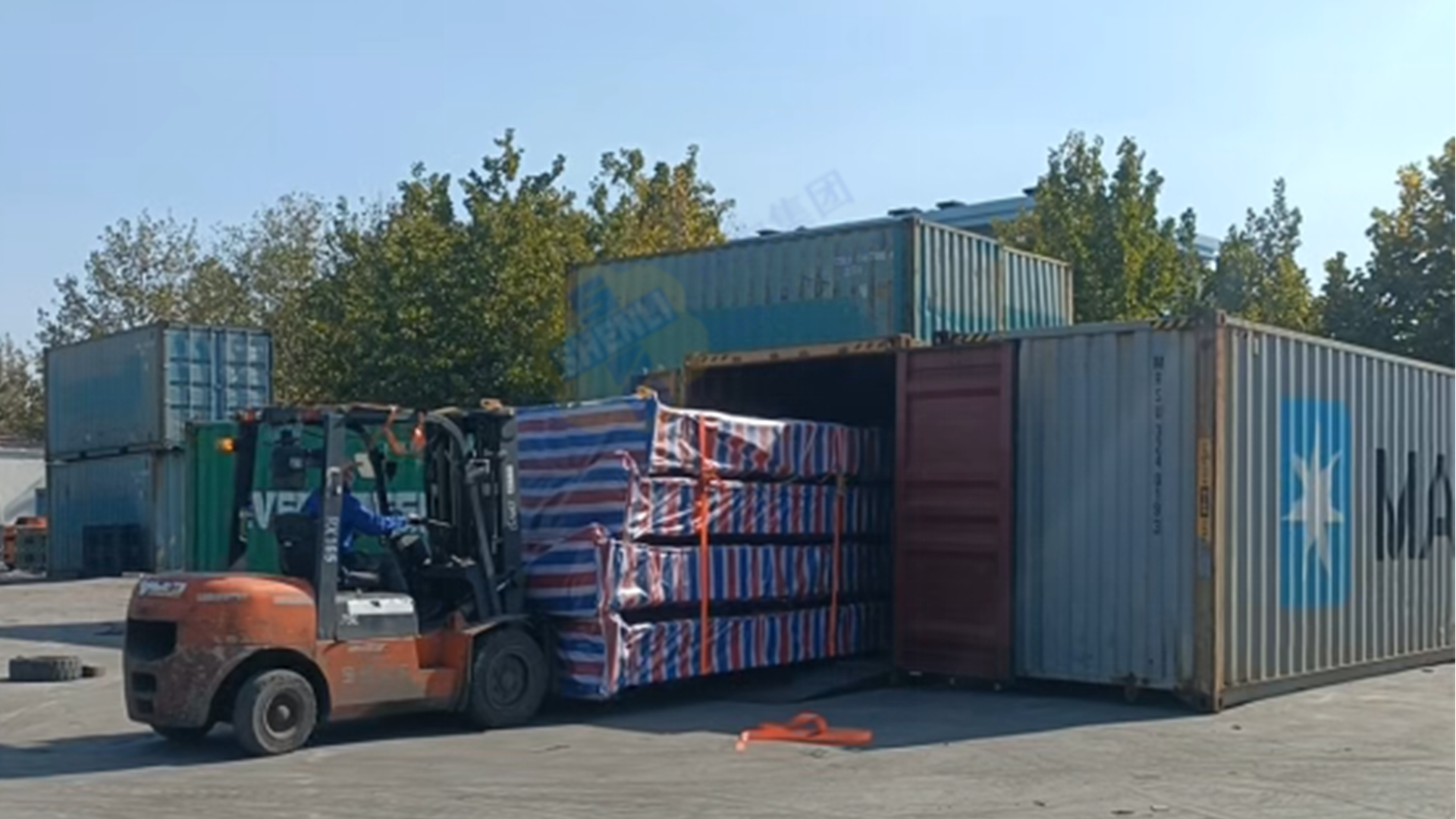

The crane components were then loaded at our workshop and containerized at the port for safe shipment to Chile.
Project Results – Stable Operation and Strong Customer Feedback
After arrival and installation, the 20 ton European standard gantry crane went into service at the precast beam factory. According to customer feedback:
-
Lifting and traveling are smooth and stable, with minimal load swing
-
Wireless control gives operators better visibility and enhances on-site safety
-
The refined structure and clean painting improve the look of the production area, making it more suitable for customer visits
-
The crane’s working duty A5 and robust design support continuous, high-frequency beam handling with low downtime
This project has become a successful reference case for our 20 ton gantry cranes in South America, especially for precast and infrastructure-related industries.
Ideal Solution for Precast & Infrastructure Projects
For precast beam factories, concrete component yards, and infrastructure contractors, a 20t European style electric hoist gantry crane like this offers:
-
High safety for heavy and repetitive lifting tasks
-
Reliable performance under intensive working cycles
-
Flexible operation with wireless remote control
-
Modern, professional appearance that supports on-site visits and audits
Whether you are planning a new precast yard or upgrading an existing lifting system, a customized 20 ton gantry crane solution can significantly improve handling efficiency and overall plant image.
Work with a Reliable Gantry Crane Partner
With this Chile project, we once again demonstrated our capability to:
-
Understand local conditions and standards
-
Provide tailor-made gantry crane solutions for specific industries
-
Control every detail from design, production and testing to packing and shipping
If you are looking for a 20 ton gantry crane, European standard gantry crane, or electric hoist gantry crane for precast concrete production, our engineering team can design a solution based on your loads, duty cycle, site layout and budget.
Contact us today to discuss your project, request a quotation, or get a customized lifting proposal for your factory or construction yard.
