Types and Selection of Semi Gantry Cranes: A 2025 Guide

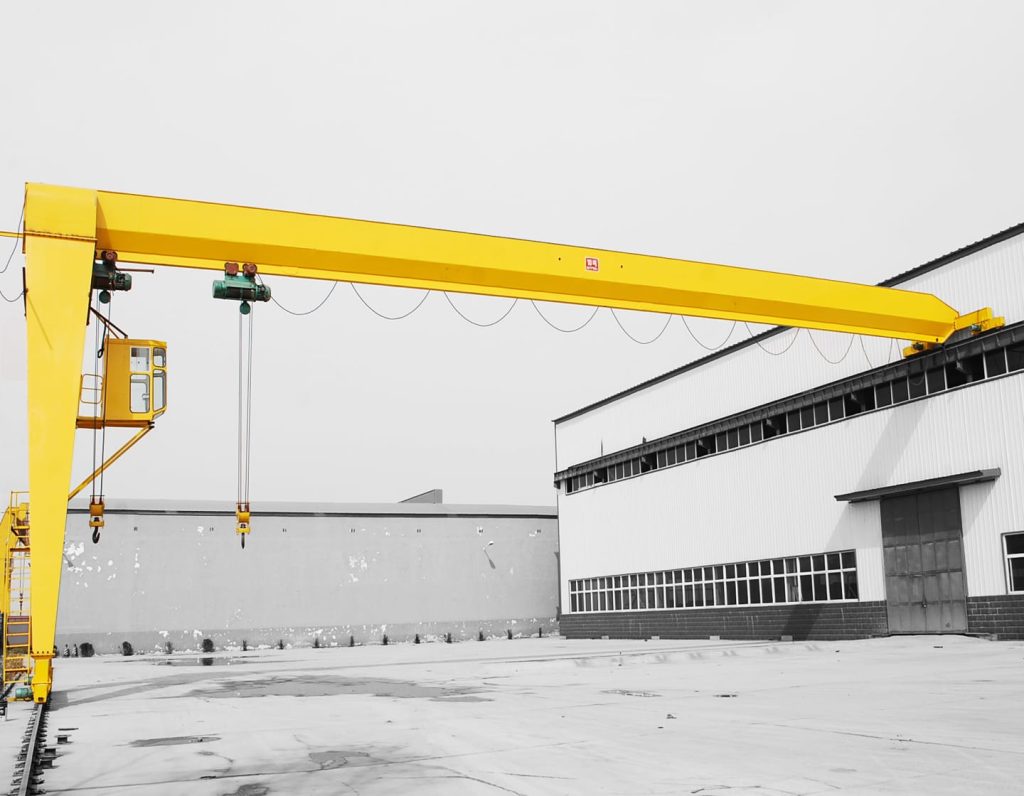

Semi gantry cranes are versatile lifting solutions designed to optimize space and efficiency in industrial settings. Combining the structural benefits of overhead cranes and gantry systems, they excel in environments with limited floor space or low ceilings. This guide explores the key types of semi-gantry cranes and provides actionable insights to help businesses select the right model for their needs.
1. Types of Semi Gantry Cranes
A. Fixed vs. Mobile Semi-Gantry Cranes
Fixed Semi-Gantry Cranes
- Permanently installed on ground rails and anchored to building structures.
- Ideal for repetitive tasks in workshops, manufacturing lines, or warehouses.
- Max Load: 1–60 tons | Span: 5–20 meters.
Mobile Semi-Gantry Cranes
- Equipped with rubber tires or rail wheels for portability.
- Used in outdoor yards, construction sites, or temporary projects.
- Example: Mobile variants with collapsible legs for rapid deployment.
B. Single-Girder vs. Double-Girder Designs
Single-Girder Semi-Gantry
- Lightweight and cost-effective for light-to-medium loads (1–20 tons).
- Ideal for assembly lines, small workshops, or maintenance tasks.
Double-Girder Semi-Gantry
- Robust construction for heavy-duty applications (20–60 tons).
- Common in steel mills, power plants, or large-scale logistics hubs.
C. Customized Configurations
- Adjustable Height Models: Designed for low-clearance facilities (e.g., 5–10m ceiling heights).
- Cantilever Extensions: Add horizontal reach for irregularly shaped loads.
- Explosion-Proof Models: Built with anti-spark materials for hazardous environments.
2. Key Factors for Selecting a Semi Gantry Crane
A. Load Capacity & Duty Cycle
- Match the crane’s rated capacity to 120% of your maximum load to ensure safety margins.
- For frequent use (e.g., 10+ cycles/hour), opt for FEM M6/M7 duty class cranes with reinforced components.
B. Workspace Constraints
- Ground Space: Semi-gantry cranes reduce footprint by 30–50% compared to full gantries. Prioritize rail-mounted models for narrow aisles.
- Vertical Clearance: Choose low-headroom designs if ceiling height is below 10 meters.
C. Mobility & Flexibility
- Mobile cranes suit multi-site operations but require flat surfaces.
- Fixed models offer higher stability for precision tasks like CNC machine installation.
D. Material & Environmental Compatibility
- Indoor Use: Epoxy-coated steel resists dust and humidity.
- Outdoor Use: Galvanized steel or weatherproof coatings prevent corrosion in ports or coastal areas.
E. Automation & Safety Features
- Smart Controls: IoT-enabled cranes with collision sensors and remote monitoring reduce accident risks by 60%.
- Anti-Sway Systems: Essential for fragile or high-value cargo (e.g., aerospace components).
F. Budget & ROI
- Entry-Level Models: Manual or basic electric cranes start at 15,000–30,000.
- Premium Models: Automated cranes with advanced safety tech range from 50,000–150,000+.
- Cost-Saving Tip: Chinese manufacturers like GH Cranes offer ISO-certified models at 30–50% lower costs than European brands.
3. Industry-Specific Recommendations
| Industry | Recommended Type | Key Features |
|---|---|---|
| Manufacturing | Single-girder, fixed semi-gantry | 12.5-ton capacity, 10m span, anti-sway control |
| Construction | Mobile double-girder | 20-ton capacity, all-terrain tires, foldable boom |
| Energy (Wind/ Solar) | Customized wide-span | 30-ton capacity, 20m span, corrosion-resistant |
| Logistics | Automated semi-gantry | RFID tracking, 15m span, rapid-loading cycles |
4. Future Proofing Your Investment
- Modular Upgrades: Select cranes with bolt-on components (e.g., extendable girders) for scalability.
- Energy Efficiency: Regenerative braking systems cut power costs by 15–20%.
- Compliance: Ensure adherence to ISO 4301, FEM 9.751, and regional safety codes (e.g., OSHA, CE).
Conclusion
Choosing the right semi-gantry crane hinges on balancing load requirements, workspace limitations, and operational goals. By prioritizing flexibility, durability, and smart features, businesses can enhance productivity while minimizing long-term costs.
Need a tailored solution? Contact our engineers for a free consultation or download our 2025 semi-gantry crane catalog to compare specs and pricing.
