Single Girder vs Double Girder Gantry Crane: 7 Key Differences You Must Know
Introduction
When you need to select a gantry crane for your workshop, yard, or industrial site, one of the first questions is: single girder or double girder gantry crane?
Choosing the wrong crane can lead to:
-
Higher operating costs – frequent breakdowns
-
Lower work efficiency – lifting speed cannot keep up with production
-
Safety risks – insufficient rigidity, especially for outdoor applications
This article compares single girder and double girder gantry cranes from 7 aspects: structure, lifting capacity, lifting height, duty cycle, total cost, outdoor stability, and customization. By the end, you will know exactly which type fits your working conditions.
1. Structure Design: Compact & Light vs Rigid & Heavy-Duty
-

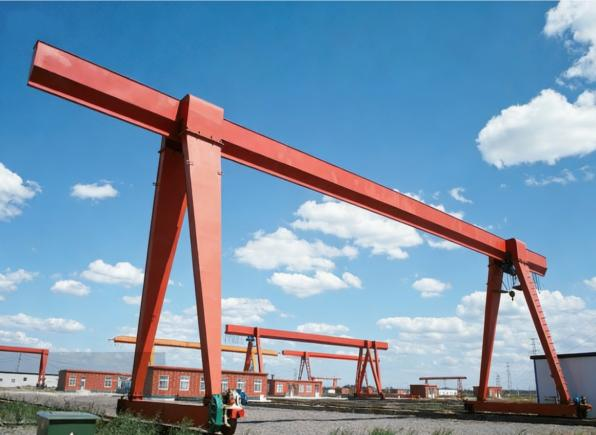

Single girder gantry crane
One main girder, compact structure, lighter dead weight. The hoist usually runs under the main girder. -

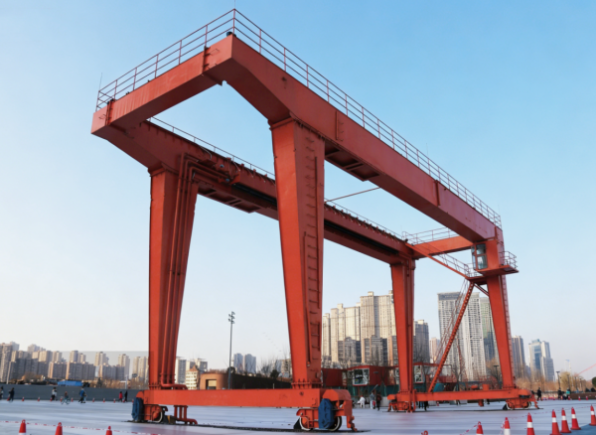

Double girder gantry crane
Two main girders, much higher rigidity. The lifting trolley runs on rails on top of the girders.
When to use each type:
-
Single girder – limited space, simple installation conditions, lighter loads.
-
Double girder – long-term heavy lifting, high stability requirements, continuous operation.
2. Lifting Capacity & Performance: Light to Medium vs Heavy Duty
Lifting capacity is often the first thing buyers look at.
-
Single girder gantry crane – rated capacity typically ≤20 tons.
-
Double girder gantry crane – covers from 5 tons up to 500 tons or more.
Typical applications:
-
Small or medium fabrication shops, small warehouses → single girder is usually enough.
-
Steel mills, infrastructure projects, ports → double girder is the preferred choice for heavy lifts.
“if you are looking for a gantry crane for steel mill applications with over 30 ton capacity, a double girder design is non-negotiable.”
3. Lifting Height: Where Double Girder Shows Clear Advantage
If your project has strict headroom or lifting height requirements, double girder is often better.
-
Single girder – the hoist hangs under the main girder, which eats up some lifting space (you can use a low‑headroom hoist to improve this, but there is still a limit).
-
Double girder – the trolley rides on top of the girders. For the same main girder height, you get more effective lifting height.
Scenarios where double girder makes sense:
Warehouse stacking, precast concrete yards, large workshops – every extra meter of lifting height directly improves daily operation efficiency.
4. Duty Cycle & Working Efficiency
-
Single girder – suitable for light to medium loads and intermittent operation.
-
Double girder – designed for heavy loads, high frequency, and continuous work cycles.
In a mass‑production factory, matching the crane’s duty cycle with your actual working schedule can significantly improve overall productivity. If your crane runs more than 8 hours a day with frequent lifts, a double girder gantry crane will save you from overheating or excessive wear.
5. Initial Price vs Total Cost of Ownership
| Cost Item | Single Girder | Double Girder |
|---|---|---|
| Initial purchase cost | Lower | Higher (typically +30% to +50%) |
| Long‑term operating cost | Lower for light/medium duty | Lower for heavy / high‑frequency duty |
When evaluating total cost, also consider:
-
Work efficiency
-
Maintenance frequency
-
Expected service life
For example, if you use a single girder crane to handle 25 tons daily, it will break down often – and the repair cost + downtime will quickly exceed the initial saving. That is why many experienced buyers say: “always compare the lifetime cost, not just the price tag.”
6. Outdoor Operation: Stability & Safety
Outdoor gantry cranes face challenges like wind loads, uneven rails, and unbalanced lifts. Double girder designs win here for three reasons:
-
Better structural balance – two girders distribute forces more evenly.
-
Higher wind resistance – smaller wind‑exposed area per ton of capacity, plus greater overall stiffness.
-
Easier integration of safety features – anti‑sway, wind brakes, and crane safety monitoring systems.
Typical outdoor heavy‑duty applications:
Ports, railway freight yards, construction sites, and steel stockyards – almost all of them choose double girder gantry cranes for safety and reliability.
“if you need an outdoor gantry crane for windy coastal areas, a double girder design with anti‑sway and wind brakes is highly recommended.”
7. Customization & Smart Features
-
Single girder – you can adjust basic parameters like capacity and span. Good for projects with simple requirements.
-
Double girder – supports multi‑trolley coordination, anti‑sway systems, automation, remote control, and even maintenance walkways.
Most professional crane manufacturers offer flexible customization. When you contact them, clearly state your real working conditions – not just “I want a 20t crane”, but also “how many lifts per hour”, “indoor or outdoor”, “future expansion plan”, etc.
Quick Comparison Table
| Aspect | Single Girder Gantry Crane | Double Girder Gantry Crane |
|---|---|---|
| Structure | One main girder | Two main girders |
| Typical capacity | ≤20 tons (light to medium) | 5–500+ tons (medium to heavy) |
| Lifting height | Relatively lower | Higher |
| Initial price | Lower | Higher (+30% to +50%) |
| Duty cycle suitability | Moderate (intermittent) | High (continuous, heavy) |
| Stability (especially outdoor) | Moderate | High |
| Customization level | Basic parameter changes | Flexible – smart features, automation |
How to Choose the Right Gantry Crane? (Checklist)
✅ Choose single girder when:
-
Max lifting capacity ≤15 tons
-
Budget is a primary concern
-
Low usage frequency (≤4 hours per day)
-
Simple installation conditions (indoor or sheltered area)
✅ Choose double girder when:
-
Max lifting capacity ≥20 tons (or likely to reach 20t in the future)
-
High lifting height is required
-
Frequent lifts and long operating hours per day
-
You prioritize long‑term efficiency over upfront cost
-
Outdoor operation with wind or unbalanced load risks
-
You need automation, smart monitoring, or advanced safety features
Common Mistakes When Buying a Gantry Crane
Based on real conversations with buyers, these mistakes happen often:
-
Only looking at the price – ignoring performance and total cost of ownership
-
Ignoring future capacity expansion – buying a crane that barely meets today’s need
-
Not matching crane type to actual working conditions – e.g., using a single girder crane for heavy outdoor work
-
Relying only on personal experience without consulting a professional crane manufacturer
Avoid these mistakes, and you can save more than 30% of long‑term operating costs while improving workplace safety.
