Description

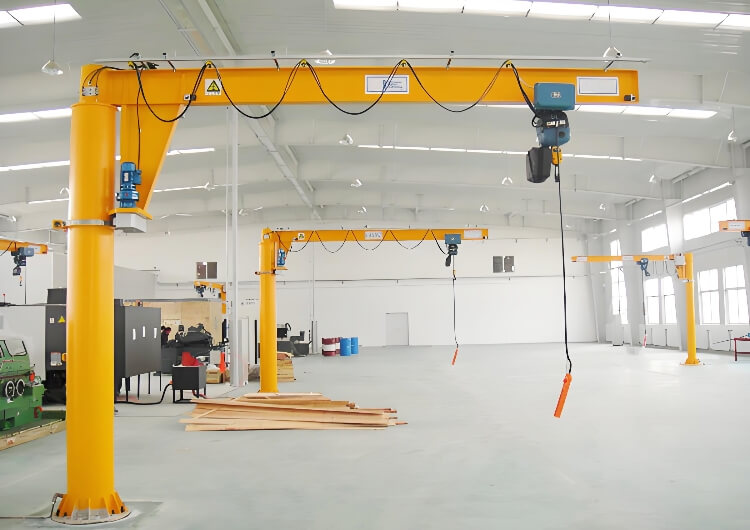

Free Standing Jib Crane , also known as Fixed-Column Jib Lift, is a type of lifting equipment featuring a column structure. It mainly consists of a column, a jib boom, a slewing drive device, and an electric hoist. With a small footprint, it is a compact and flexible lightweight lifting device capable of achieving efficient cargo lifting and handling within limited spaces.
Our Column Mounted Jib Crane is an ideal solution designed to optimize space utilization and enhance production efficiency. This crane is mounted on a pillar or wall, providing flexible lifting capabilities in various environments such as manufacturing, warehousing, and assembly lines. Its unique design allows the crane to move freely within a radius, greatly simplifying the handling of heavy loads.
Key Features:
- Load Capacity: Customizable according to specific needs, with a typical load range from 0.5 tons to 10 tons.
- Flexibility: The jib arm typically has a rotation range of 270 to 360 degrees, allowing it to easily reach multiple points within the work area.
- Durable Construction: Made of high-strength steel, ensuring long-term stable operation and safety.
- Space Saving: The column-mounted design perfectly adapts to limited workspace without obstructing ground operations.
Application Areas:
- Manufacturing: Efficiently handles heavy loads in factory operations, boosting production line productivity.
- Assembly Lines: Facilitates quick assembly and maintenance, ensuring smooth production processes.
- Warehousing: Optimizes material handling and enhances operational efficiency in warehouses.
By choosing our Column Mounted Jib Crane, you will gain a flexible, efficient, and safe lifting solution. Whether it’s for heavy load handling or streamlining production processes, our product will help you achieve your goals. Contact us today to learn more about our Column Mounted Jib Crane and get a customized professional solution!
Parameters
| Capacity | t | 0.25-20 |
| Lift height | m | 3-12 |
| Radius | m | 3-10 |
| Lift speed | m/min | 8 |
| Traveling | m/min | 20 |
| Rotation Speed | m/min | 0.7-0.6 |
| Rotation | degree | 360 |
| Control way | Pendent / Remote Control | |
| Working temperature | -20~+40℃ | |
Product Drawing
Feature
- Flexible Slewing: With a compact structure and flexible operation, it can efficiently lift cargo within narrow spaces. The jib can rotate and move in both horizontal and vertical directions, adapting to various working environments and lifting requirements.
- Safe and Stable: Made of high-strength steel, it possesses sufficient strength and stability, ensuring the safety of lifting operations. Meanwhile, operators can perform remote control via a remote controller or handle, reducing operational risks.
- Versatile: This crane can be customized according to actual needs, including the height of the column, the length of the jib, and lifting capacity, to meet the requirements of different workplaces.
Applications
- Construction Engineering: Used for lifting and transporting various construction materials such as steel bars, bricks, and cement.
- Manufacturing: Used for lifting and transporting various manufacturing equipment and finished products, such as machine tools, automobiles, and ships.
- Mining and Ports: Used for lifting and transporting various ores and cargo.
- Logistics and Warehousing: Used for rapid loading and unloading of goods, improving logistics efficiency.
