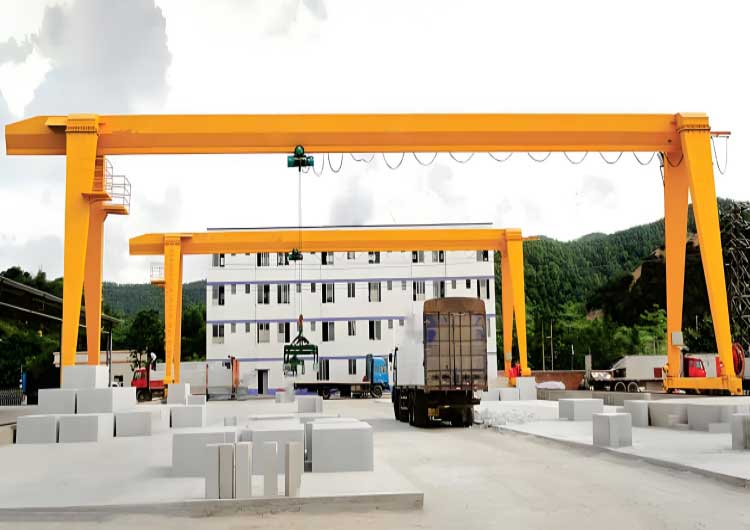

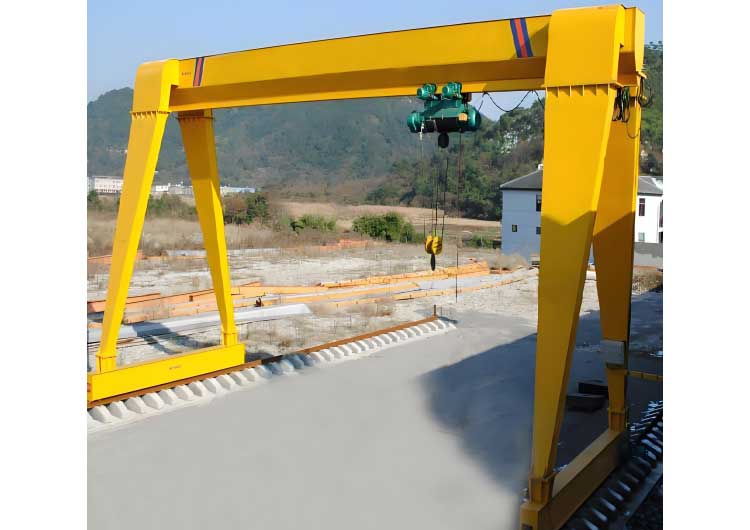

Single girder gantry cranes
- Capacity: 1t-32t
Span Length: 4-35m
Lifting Height: 6m/9m/12m
Duty Rating: A3-A5
Operating Voltage: 220V-690V, 50-60Hz, 3-phase AC
Operating Environment Temperature: -25°C to +40°C, relative humidity ≤ 85%
Crane Control Modes: Pendant Control / Wireless Control / Cabin Control
Description
The single girder gantry crane is specifically designed to meet the handling needs of large and heavy goods in spacious indoor and outdoor areas. It features a main beam made of a single piece of high-strength steel and a stable gantry structure, equipped with advanced trolley operating mechanisms and electrical control systems. With spatial advantages such as a large span, adjustable height, and savings in time costs, it is widely used in ports, docks, warehouses, factories, and other venues.
Parameters
| Capacity | t | 3 | 5 | 10 |
| Span | S(m) | 12-24 | 12-30 | 12-30 |
| Lifting height | m | 6-9 | 6-9 | 6-12 |
| Lifting speed | m/min | 8、8/0.8 | 8、8/0.8 | 7、7/0.7 |
| Trolley speed | m/min | 20 | 20 | 20 |
| Crane speed | m/min | 20 | 20 | 20 |
| Work duty | A3-A5 | A3-A5 | A3-A5 |

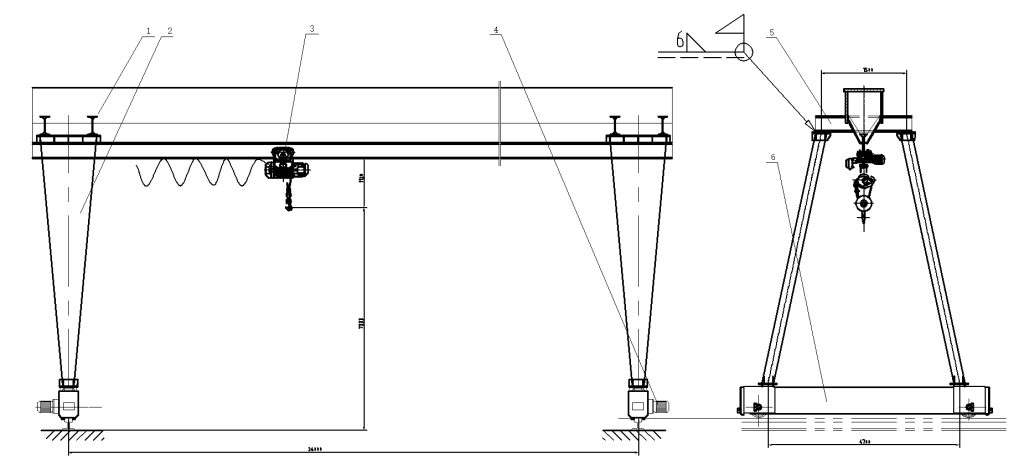

Product Drawing
Feature
- Reasonable Structure: It boasts high site utilization and a large operating range, saving time and effort during use and producing low noise.
- Excellent Performance: With light self-weight, small wheel pressure, and a simple structure, it operates smoothly and has a large lifting capacity.
- Space-saving: The height above the track surface is small, occupying minimal space. Convenient Operation: The operation mode is flexible, allowing for either handle or remote control operation, thus saving labor.
- Easy Installation: High-strength bolted connections enable quick and easy installation and disassembly.
- Customizable: Customizable based on the actual dimensions of the client’s site, it offers strong applicability and ease of use.
Applications
- Steel Market: Efficiently completes the lifting and handling of steel products, enhancing production efficiency.
- Shipyard: Used for lifting ship hull components and large equipment.
- Dock: Handles the loading and unloading of containers and cargo at the dock.
- Factory: Involved in material handling and assembly on production lines.
- Warehouse: Facilitates rapid material handling and storage.
