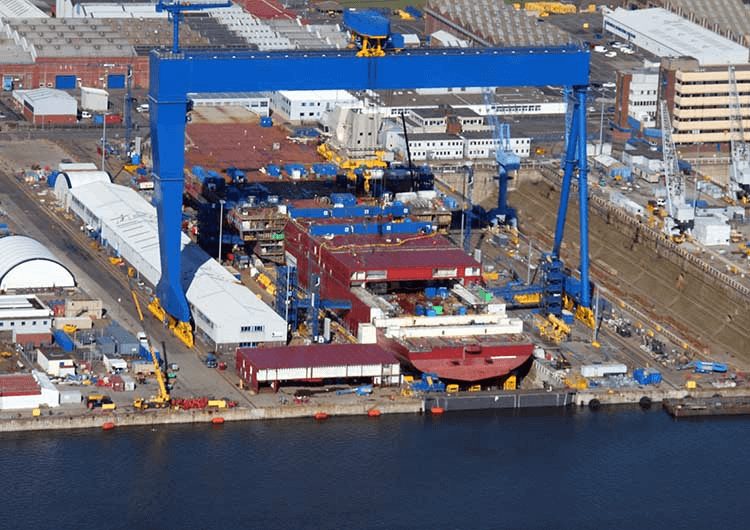

Ship building gantry cranes
- Capacity: 50t-1000t
Span Length: 30-150m
Lifting Height: 22m-65m
Working Duty:A3- A5
Operating Voltage: 220V-690V, 50-60Hz, 3-phase AC
Operating Temperature: -25°C to +40°C, Relative Humidity ≤85%
Crane Control Mode: Cabin Control / Wireless Remote Control
Description

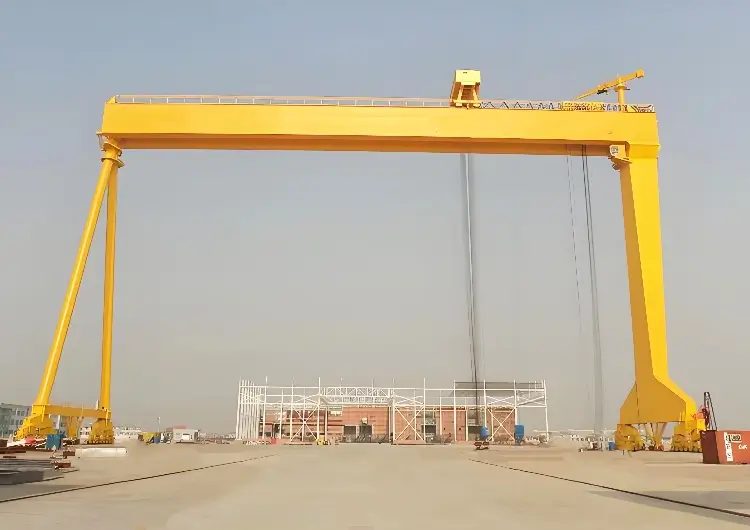

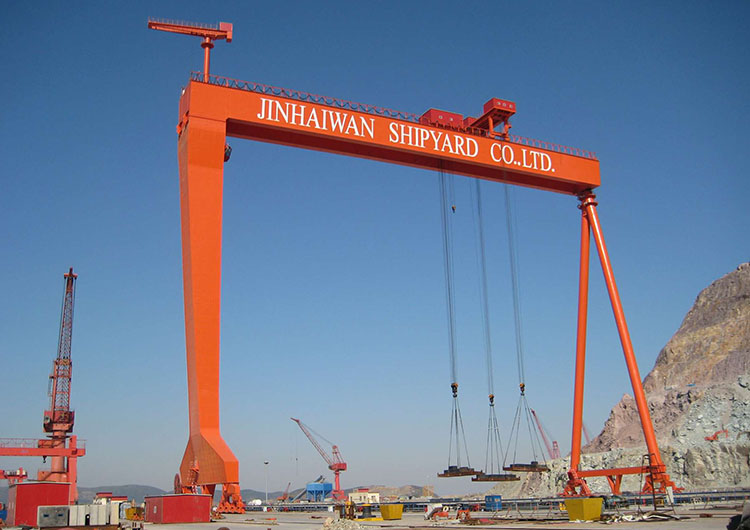

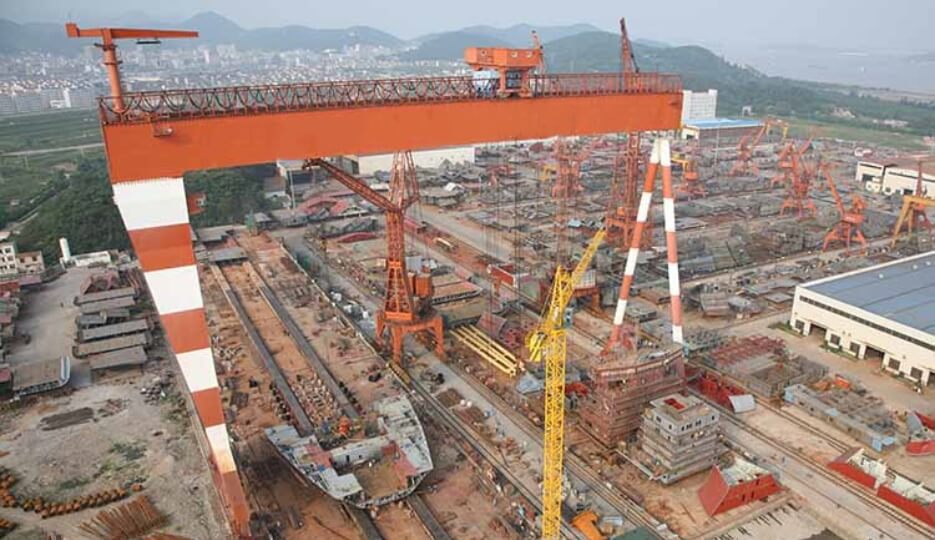

The shipbuilding gantry crane is a large and efficient lifting equipment specifically designed for the shipbuilding industry. It is characterized by its heavy lifting capacity, wide span, and high lifting height. Through its unique gantry structure and the configuration of upper and lower trolleys, it enables comprehensive lifting, leveling, turning, and joining operations of ship sections in the dock or on the shipbuilding berth. With advantages such as small footprint, high space utilization, and strong flexibility, it is widely used in the shipbuilding industry and has become a key equipment for the assembly and movement of ship sections. It can improve the efficiency and quality of the shipbuilding process and meet the construction demands of large-scale and complex ship structures.
Parameters
| Item | specifications | |||||||||
| capacity | Main | t | 50 | 75 | 100 | 200 | 320 | 400 | 500 | |
| AuX | 10 | 20 | 20 | 32 | 50 | 30 | 80 | |||
| Span | Span | 30 | 40 | 16 | 22 | 18 | 18 | 28.5 | ||
| Lifting height | Main | m | Above rail max.22 | 22 | 16 | 12 | 13 | 18 | 3.3/10 | |
| AuX | Above rail max.24 | 17.5 | 13 | 14 | 20 | 34 | ||||
| Lifting speed | Main | m/min | 7.68 | 6.25 | 4.62 | 0.2-1.8 | 0.14-1.4 | 0.15-1.5 | 0.15-1.5 | |
| AuX | 19.8 | 9.28 | 9.28 | 6 | 7.5 | 6 | 0.6-6 | |||
| Trolley speed | m/min | 38.6 | 38.9 | 13.1 | 20 | 7 | 10 | 1.36-13.6 | ||
| Crane speed | m/min | 42.7 | 17.8 | 16 | 17 | 18 | 1.6-16 | |||
| Work duty | / | A3-A5 | A3-A5 | A3-A5 | A3-A5 | A3-A5 | A3-A5 | A3-A5 | ||
| Track | / | QU 80 | QU 100 | QU 120 | ||||||

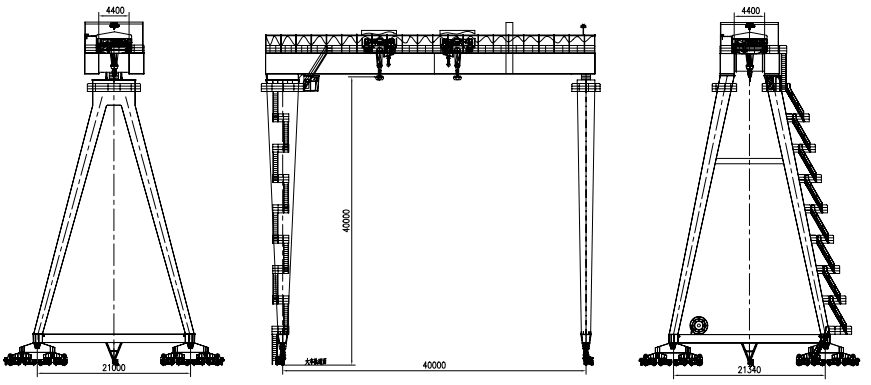

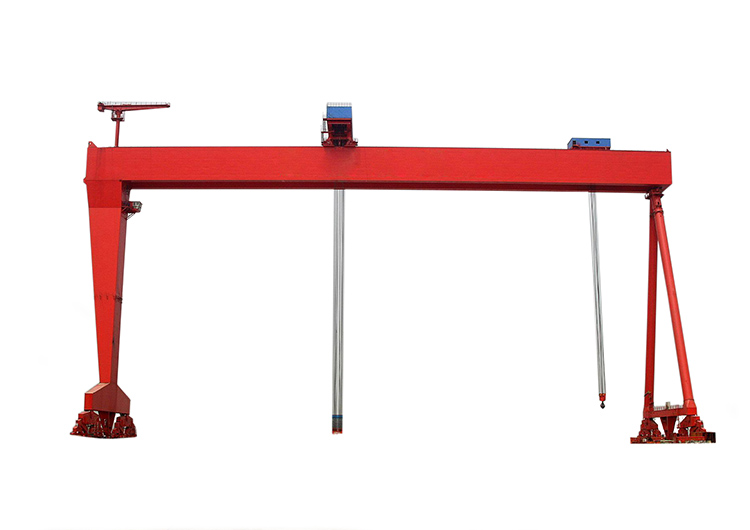

Product Drawing

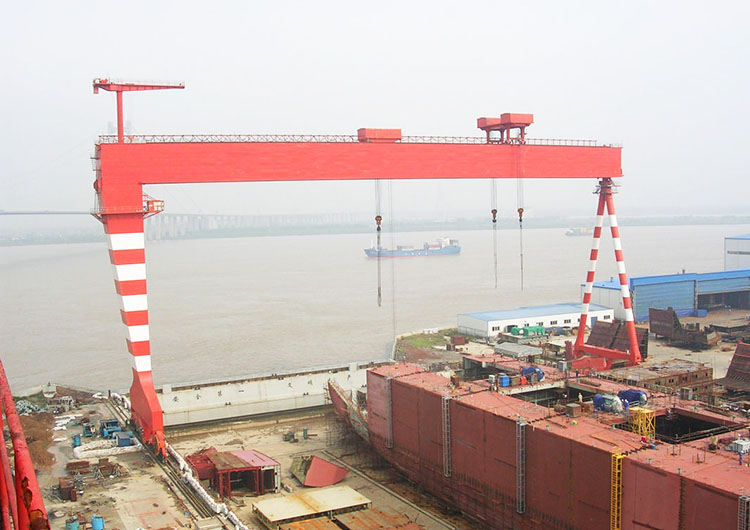

Feature
- Heavy-duty Capacity: Possesses significant lifting and load-bearing capabilities to meet the demands of dock and shipyard lifting and ship-turning operations.
- Large Span Coverage: Typically features a large span to accommodate the broad dimensions of ships, capable of covering the entire working area of the ship to ensure smooth operations.
- Height Adjustability: Equipped with height adjustment functionality, enabling operations at various heights and enhancing work flexibility.
- Functional Diversity: Supports multiple functions to meet diverse operational needs, capable of flexibly adapting to various complex lifting scenarios.
- Structural Stability: Optimized design of the main beam and legs enhances the rigidity and stability of the gantry, ensuring precise installation of components.
- Precise Control: Equipped with precise control systems and operating devices, enabling fine operations and control.
- Safety: Shipyard gantry cranes must meet stringent safety standards during design and use to ensure the safety of personnel and equipment.

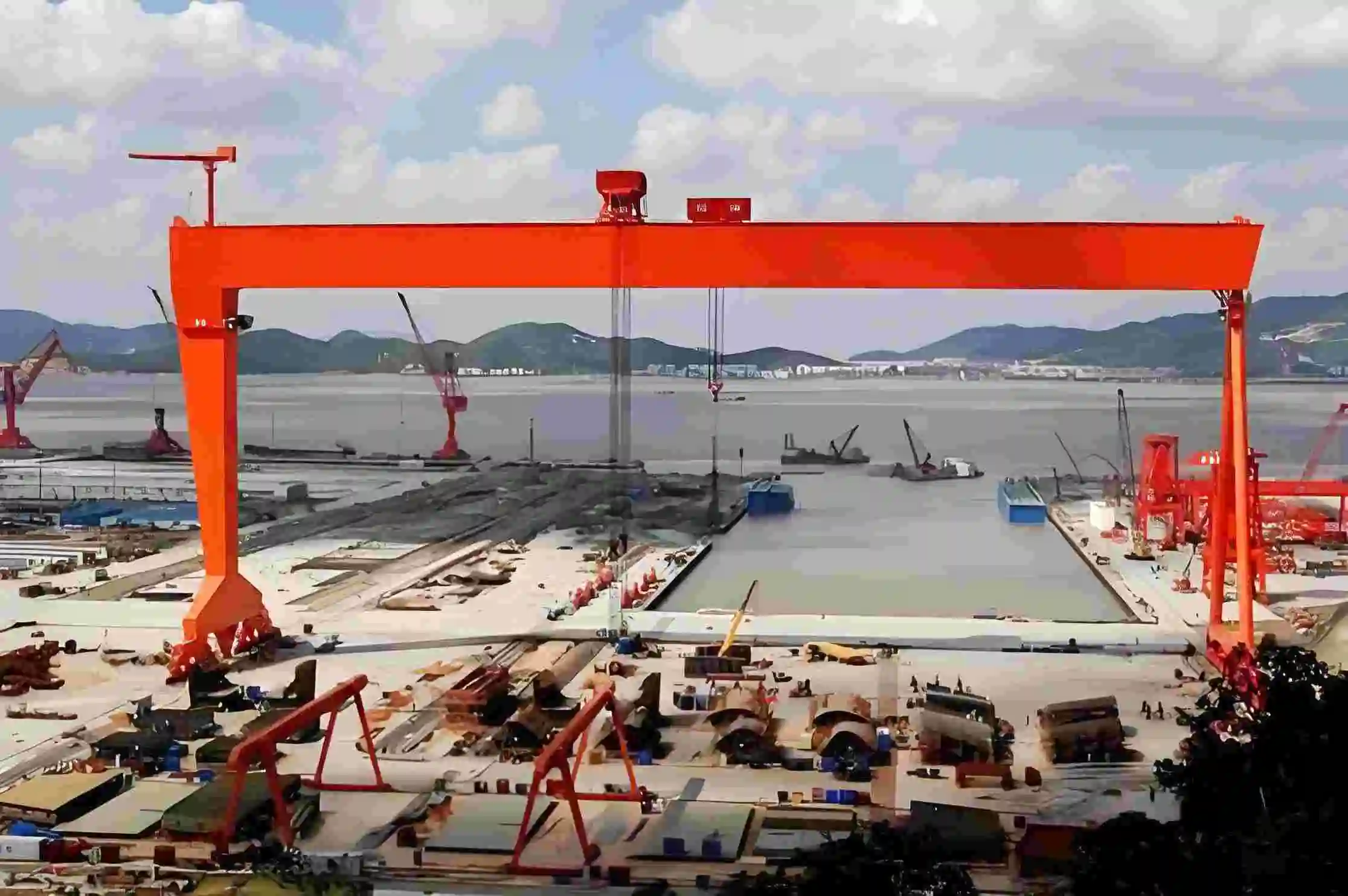

Applications

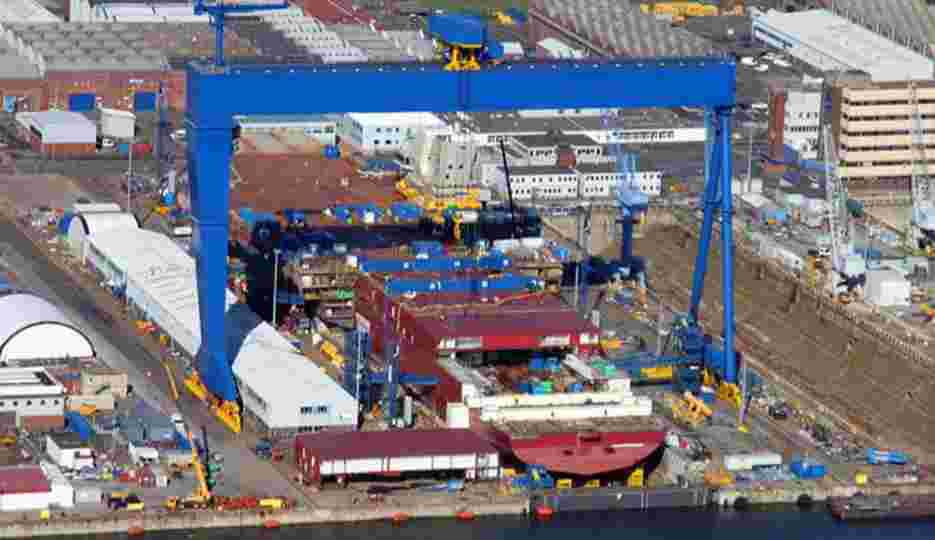

- Ship Assembly: Efficient transportation and assembly of ship hull components.
- Ship Dismantling:Safe dismantling of ship structures for recycling and reuse.
- Ship Repair:Lifting and replacement of damaged components to restore ship performance.
- Component Installation and Removal: Precise installation and removal of critical components such as engines and propellers.
