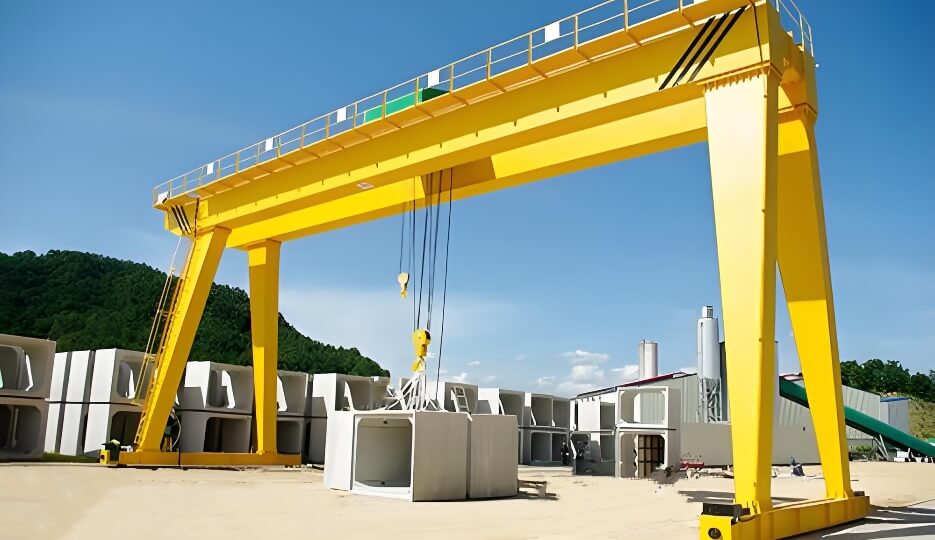

Double girder gantry cranes
- Capacity: 5t-320t
Span Length: 18-36m
Lifting Height: 6m/9m/12m
Duty Rating: A3-A8
Operating Voltage: 220V-690V, 50-60Hz, 3-phase AC
Operating Environment Temperature: -25°C to +40°C, relative humidity ≤ 85%
Crane Control Modes: Wireless Remote Control / Cabin Control
Description
The double girder gantry crane is specifically designed for handling heavy and bulky cargo. Its distinguishing features include a double-girder and gantry structure, providing robust lifting capacity and a stable operating platform. Equipped with precision trolleys and advanced electrical systems, it achieves efficient and precise handling. With a large span, adjustable height, compact structure, flexible operation, strong carrying capacity, high site utilization, and stable operation, it adapts to various handling requirements and is widely used in ports, factories, warehouses, and other venues. It is an essential piece of equipment in the industrial and logistics fields
Parameters
| Item | specifications | |||||||||
| capacity | Main | t | 50 | 75 | 100 | 200 | 320 | 400 | 500 | |
| Aux | 10 | 20 | 20 | 32 | 50 | 80 | 80 | |||
| Span | m | 18-35 | 18-35 | 18-35 | 18-35 | 18-35 | 18-35 | 18-35 | ||
| Lifting height | Main | m | Height can be customized according to customer needs | |||||||
| Aux | ||||||||||
| Lifting speed | Main | m/min | 5 | 4 | 3.2 | 0.2-1.8 | 0.14-1.4 | 0.15-1.5 | 0.15-1.5 | |
| Aux | 8.5 | 5.8 | 5.8 | 6 | 7.5 | 6 | 0.75-7.5 | |||
| Trolley speed | m/min | 25 | 30 | 24 | 20 | 20 | 10 | 0.2-2 | ||
| Crane speed | m/min | 30 | 30 | 16 | 40 | 18 | 30 | |||
| Work duty | / | A3-A8 | A3-A8 | A3-A8 | A3-A8 | A3-A8 | A3-A8 | A3-A8 | ||
| Track | / | QU 80 | QU 100 | QU 120 | ||||||

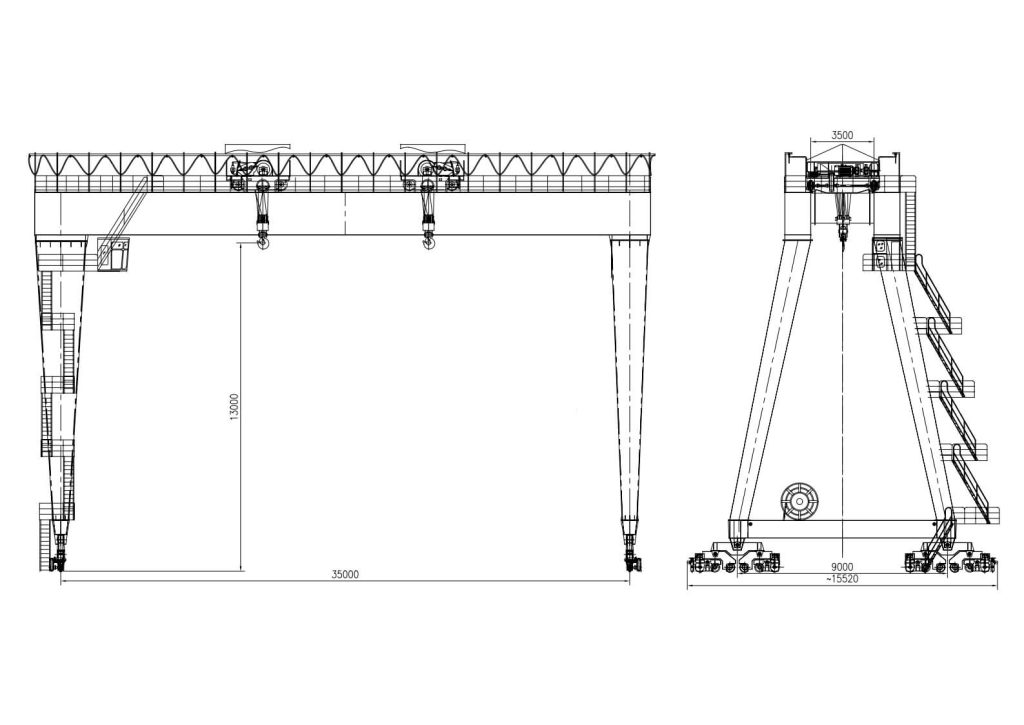

Product Drawing
Feature
- Sturdy Structure: The double-beam design offers greater carrying capacity and stability. The gantry structure is typically made of high-strength steel, ensuring the overall structural robustness.
- Versatile Operations: With a large span and strong lifting capacity, it adapts to various sites.
- Flexible Operation: It can be controlled from the ground or operated aerially, enhancing work efficiency. Equipped with an advanced electrical system, it achieves precise lifting and positioning.
- Safe and Reliable: It is equipped with multiple safety devices and reliable windproof devices.
- Easy Maintenance: The modular design facilitates easy maintenance.
- Environmental Adaptability: It adapts to various working environments with low noise and minimal environmental impact.
- Highly Customizable: It can be customized according to the actual size and needs of the client’s site, providing personalized solutions.
Applications
- Steel Market: Efficiently completes lifting and handling of steel products.
- Shipyard: Used for lifting ship hull components and large equipment.

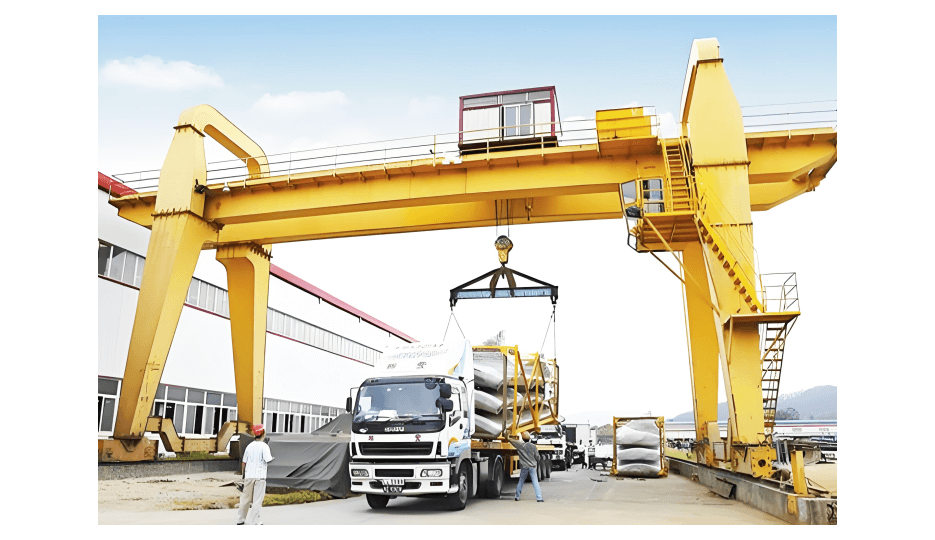

- Dock: Handles the loading and unloading of containers and cargo at the dock.
- Factory: Used for material handling and assembly on production lines.
- Warehouse: Facilitates rapid material handling and storage.
