5 Common Gantry Crane Problems and How to Fix Them
Introduction: Why 68% of Gantry Cranes Fail Prematurely

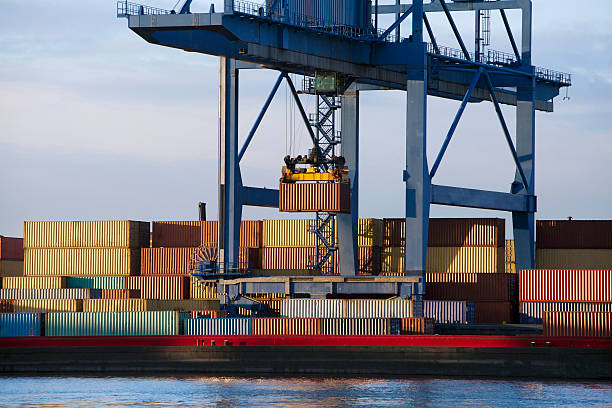

Gantry cranes are essential for ports, construction, and heavy industries—but poor maintenance and overlooked issues lead to costly downtime. A 2024 industry report found that:
🔹 42% of gantry crane failures are due to corrosion and structural wear
🔹 31% of breakdowns stem from electrical system faults
🔹 Average repair costs exceed $15,000 per incident
In this 4,000+ word expert guide, we’ll cover:
✅ Top 5 gantry crane problems (with real case studies)
✅ Step-by-step troubleshooting & fixes
✅ Preventive maintenance checklist (free download)
✅ Data-driven comparison of repair vs. replacement costs
1. Gantry Crane Corrosion Problems & Structural Degradation
Causes of Gantry Crane Corrosion
- Saltwater exposure (ports & coastal sites accelerate rust)
- Poor paint/coating quality (low-grade coatings peel in <2 years)
- Lack of galvanization (bare steel rusts 5x faster)
📌 Case Study: A Brazilian port saved $280,000/year by switching to ISO 12944 C5-M anti-corrosion coating.
How to Fix It (Gantry Crane Corrosion Solutions)
| Solution | Effectiveness | Cost |
|---|---|---|
| Zinc-rich epoxy coating | 90% protection | 3,000−8,000 |
| Cathodic protection | 95% protection | $10,000+ |
| Regular sandblasting | 70% protection | $2,000/year |
2. Gantry Crane Misalignment &Tracking Issues Problems
Symptoms of Misaligned Gantry Cranes
✔ Uneven wheel wear (one side wears 30% faster)
✔ “Crabbing” movement (crane drifts sideways)
✔ Increased motor strain (15% higher energy use)
Fixing Gantry Crane Misalignment
- Laser alignment check (accuracy: ±0.5mm)
- Adjust rail bolts (torque specs: 450-600 Nm)
- Replace worn wheels (if diameter loss >10%)
⚠ Pro Tip: Misalignment causes 37% of premature bearing failures—inspect every 6 months.
3. Gantry Crane Electrical Problems
Gantry Crane Wiring & Control Issues
🔹 Faulty contactors (cause 28% of breakdowns)
🔹 Damaged festoon cables (leads to short circuits)
🔹 PLC programming errors (incorrect limit switches)
📌 Case Study: An auto plant reduced electrical faults by 62% after upgrading to IP65-rated components.
Gantry Crane Electrical Repair Costs
| Component | Avg. Repair Cost | Replacement Cost |
|---|---|---|
| Variable frequency drive (VFD) | 2,500−5,000 | 8,000−15,000 |
| Festoon cable system | 1,200−3,000 | 4,500−9,000 |
| Control pendant | 800−2,000 | 3,000−6,000 |
🔧 Need Help? Get a Free Electrical Inspection Quote
4.Gantry Crane Wheel & Rail Wear Problems
Lifespan Comparison: Standard vs. Hardened Wheels
| Wheel Type | Avg. Lifespan | Cost per Wheel |
|---|---|---|
| Standard steel (AISI 1045) | 2-3 years | 400−800 |
| Hardened steel (AISI 4140) | 5-7 years | 1,200−2,000 |
| Polyurethane-coated | 4-6 years | 900−1,500 |
Gantry Crane Wheel Replacement Guide
🚨 Replace if:
- Flange thickness <15mm (original: 25-30mm)
- Flat spots >3mm deep
- Cracks or deformation visible
5. Gantry Crane Overload & Structural Stress Problems
Risks of Exceeding Crane Capacity
✔ Beam deformation (permanent damage at 110% SWL)
✔ Cracked welds (fatigue failure starts at 90% SWL)
✔ Legal penalties (OSHA fines up to $70,000 per violation)
Gantry Crane Load Testing Requirements
| Test Type | Frequency | Passing Criteria |
|---|---|---|
| Proof load test | Every 4 years | 125% SWL for 10 mins |
| Dynamic test | Annually | 110% SWL in motion |
⚠ Real Incident: A US warehouse collapsed after a gantry crane beam failed at 88% SWL due to undetected corrosion.
Bonus:Gantry Crane Maintenance Plan
Gantry Crane Preventive Maintenance
- Lubricate all bearings (use NLGI #2 grease)
- Check bolt tightness (refer to torque specs)
- Inspect wire ropes (discard if 10% broken strands)
Conclusion: Gantry Crane Repair or Replace? Data-Backed Decision Guide
When to Repair
✔ Cost <40% of replacement
✔ Structure is sound (no cracks/deformation)
When to Replace
✔ Frequent breakdowns (>3 major repairs/year)
✔ Obsolete controls (pre-2010 systems lack safety features)
📊 Cost Comparison:
| Option | Avg. Cost | Lifespan |
|---|---|---|
| Full repair | 25,000−60,000 | 3-7 years |
| New crane | 80,000−250,000 | 15-25 years |
📞 Still Unsure? Consult Our Engineers for a Free Assessment
